|Welding Current:||200A||Welding Speed:||45--60 Times Per Min|
|Width Of Mesh:||Max 2500mm||Mesh Size:||50*50--300*300mm|
|Length Of Mesh:||50m||Weight:||4700KG|

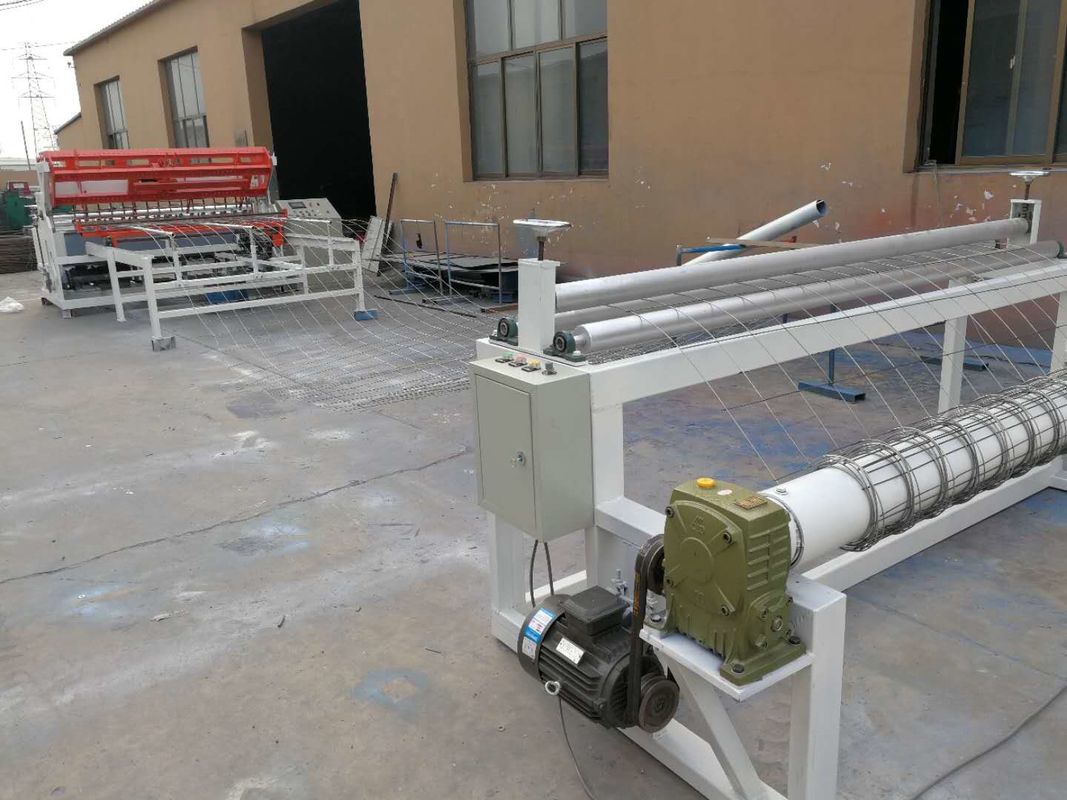

wire mesh roll welding machine,
wire mesh fencing machine

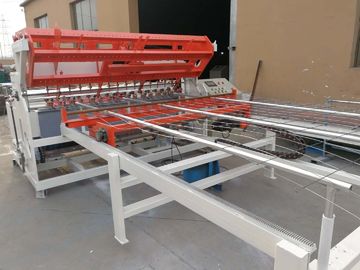

Automatic building steel wire mesh welding machine
It adopts synchronous control skill.The welding time and separate welding are controlled by computer based on windows operation system,which makes the operation more intelligentized.
The longitudinal wires
are fed continually in coils,which can be straightened,cut,welded,and placed in order automatically,mesh drawing system is controlled by servo motor which improves the precision of mesh opening size,meanwhile the longitudinal and transversal spacing are adjustable
This machine is realizes continual welding in coil wires.In addition,it simplifies the process that every tensile spring has to be changed when the welding wire diameter is different.You only need to switch the control button of are cylinder to change the pressure of welding point.
It is used widely in industry and construction, such as building board, the roof, the wall, the bridge, concreteroad, the floor, the airport, cement pipe, concrete prefabricated components, retaining wall, protection slope, the tunnel, the dock, the dyke and so on.
|Longitude wire space||50-200mm||Cross wire space||50-200mm|
|Mesh width||Max.2.5m||Welding speed||45 times/min|
|Longitude wire feeding||From wire coils||Cross wire feeding||Pre-straightened&pre-cut|
|Welding electrodes||48pcs||Rated electrical power||125kva*6pcs|
1) When 3-4mm, mesh aperture min.50*50mm (longitude min.50mm; weft min.50mm)
2) When 4-5mm, mesh aperture min.100*100mm (longitude min.100mm; weft min.50mm)
