|Line Wire Type:||Pre-straighten And Pre-cut||Cross Wire Type:||Pre-straighten And Pre-cut|
|Wire Diameter:||2.5--6mm||Mesh Opening:||50x200mm|
|Panel Size:||3x2.5m||PLC:||Panasonic Brand|
chicken mesh making machine,
automatic wire mesh machine

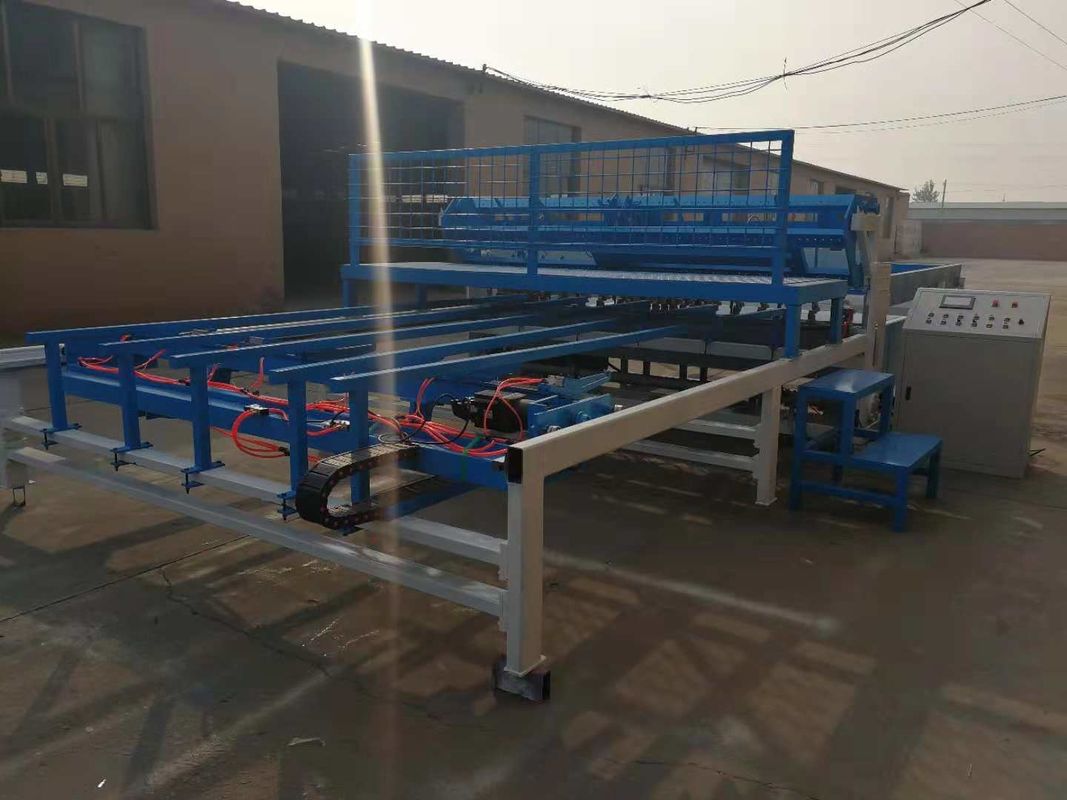

Factory Price Welded Mesh Panel Welding Equipment For Mesh 50x200mm
1. This machine adopts synchronous control technique. The center-control and welding time are composed of Panasonic PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding.
The cross wire will be fed automatically with the help of a stepper motor. Falling wire automatically. The machine stops automatically if cross wires are used up in the hopper.
3. Adjustable longitude wire space and cross wire space.The line wire and the cross wire are pre-straightened and pre-cut. The greatest advantage is that you can adjust the distance of cross wire at random on the same one mesh panel.For example, 50x100, 50x150, 50x200, 50x250, 50x300 in one mesh panel.

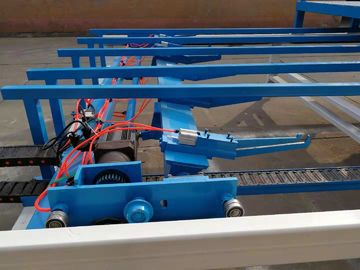

4. Mesh pulling system is controlled by servo-motor that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.
5. The welding transformer is working one by one. Not working together.Welding pressure Adjustable by springs.
6. The new machine adopts an integrated water-cooled transformer, whose voltage is 125 KVA. The welding transformer is water-cooling.
7. The welded mesh panel welding equipment equips 8 pcs welding transformer. each transformer is 125KVA.
8. Welding time and welding current are regulated separately. It is easy to establish when the diameter of the wire is changed.
9. The power transformer must be at least 120KVA, and the maximum distance between the power transformer and the machine must be 80 m.
10. Material:Suitable for low carbon iron wire, ribbed wire, cold drawn wire,or galvanized (cold galvanized, hot galvanized) processing.
|Wire diameter||2.5--6.0mm||Line wire form||Pre-cut wire (automatic feeding)|
|Line wire distance||50--300mm(adjustable)||Weft wire form||Pre-cut wire|
|Cross wire distance||50--300mm(adjustable)||Rated voltage||380V 50HZ|
|Welding net width||2500mm||Welding transformer||125KVAx6PCS|
|Welding speed||45--60 times/min||Panel mesh Length||Max 6m|
|Welding spots||48||Overall dimension||9.5m*3.2m*2.1m(L*W*H)|
|Machine weight||4.5T||Motor power||5.5 KW|
|Workshop||16m*5m*4m(L*W*H)||Power supply||at least 120KVA|
