|Width Of Mesh:||Max 2500mm||Mesh Size:||50*50--200*200mm|
|Length Of Mesh:||According To Your Requirement||Welding Speed:||40--60 Times Per Min|
|Transformer:||160KVA*6||Control System:||Mitsubishi PLC|
fence panel making machine,
fencing wire making machine
Best Price Automatic Fence Mesh Panel Welding Machine Used In Airport
(1) Integrative welding machine——controlled by PLC
(2) Adjustable of distance of line wires——input the date of cross wires space, any character can reach.
(3) Cross wires putting in device——better than before, having applying the patent.
(4) Adopt auto welding by software——reduce the demand for electricity and pollution of electricity grid.
(5) The welding pressure is even and identical——guarantees the high quality of all the welding spots.
(6) Wire feeding way:cross wires and line wires should be pre-straightened and pre-cut.
(7) 160KVA Transformer with separately welding controller with water cooling transformer.
(8) Electric motor: General motor, equipped with a frequency adjustable motor
(9) The greatest advantage is that you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.
(10) Material:Suitable for low carbon iron wire, deformed bar or galvanized (cold galvanized, hot galvanized) processing
Main parameters-- Automatic Mesh Welding Machine/Welded Steel Bar Mesh Machine
|Model||Model No. MLG 2500||Wire diameter||2--6mm|
|Line wire spacing||50--200mm||Cross wire spacing||50--200mm|
|Welding Mesh width||2500mm||Welding Mesh length||Max 6000mm|
|Welding points||51pcs||Welding speed||50--60 times/min|
|Welding transformer||160KVAX6pcs||Mesh drawing system||Servo motor back and forth|
|Cross wire||Pre-straightened and precut||Line wire||Pre-straightened and precut|
|Power||380V 60HZ 3phase(customized)||Motor||4.0KW|

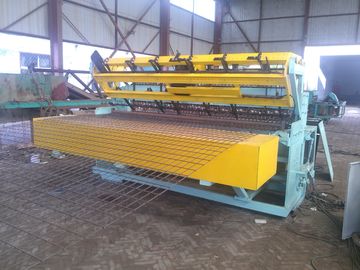

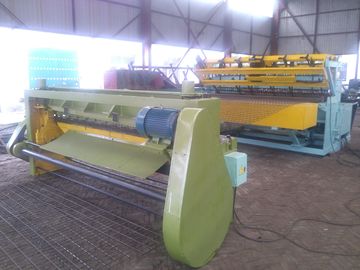

Detailed pictures-- Automatic Mesh Welding Machine/Welded Steel Bar Mesh Machine
