Deformed Steel Wire Mesh Machine , Concrete Rebar Mesh Welding Machine

Deformed Steel Wire Mesh Machine , Concrete Rebar Mesh Welding Machine

Deformed Steel Wire Mesh Machine , Concrete Rebar Mesh Welding Machine
Deformed Steel Wire Mesh Machine , Concrete Rebar Mesh Welding Machine Deformed Steel Wire Mesh Machine , Concrete Rebar Mesh Welding Machine

Large Image :  Deformed Steel Wire Mesh Machine , Concrete Rebar Mesh Welding Machine Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: MLG
Certification: CE
Model Number: MLG-2500

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: 1.steel bar reinforcing mesh welding machinery will be packed with plastic film. 2.The accessories will be packed with wooden box. 3.All the machines suitable 40 feet container to be loading
Delivery Time: 30 days after receiving deposit or L/C.
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4--5 sets per month
Detailed Product Description
Transformer: 125KVA*13 Mesh Opening: 100--300mm
Width Of Mesh: 2500mm Length Of Mesh: 6m
Capacity: 270n Per Hour Motor: 15KW
Name: Reinforcing Mesh Welding Machine
High Light:

rebar mesh welding machine

,

rebar straightening cutting machine

Deformed Steel Bar Mesh Welding Machine / Concrete Rebar Mesh Welding Machine



Product description



The details of steel bar reinforcing mesh welding machinery



1. The machine is used for wire diameter 5-12mm, it is an automatic equipment that desiged and manufactured by ourselves. This machine is driven by pneumatic system and composed of line wire support system, water cooling welding transformer, pneumatic control cross wire falling system, servo motor pulling mesh device.



2. The machine uses PLC touch screen control technique, we use Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, so it can weld different mesh size on the same mesh.



3. Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.



4. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases the production efficiency.



5. Welding system: the machine welding system is controled by pneumatic system, which makes the adjusting of welding pressure simple and convenient. At the same time, the welding electrodes are equipped with water cooling system to make sure the welding during a long working time, and prolong the life .



6.  The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.



Technical parameter:



Items MLG-12AA-50-1200 MLG-12AA50-1600 MLG-12AA50-2500
wire diameter 5-12mm 5-12mm 5-12mm
line wire space 100-300mm 100-300mm 100-300mm
cross wire space 50-300mm 50-300mm 50-300mm
wire forms pre-cut wires pre-cut wires pre-cut wires
mesh width 1200mm 1600mm 2500mm
number of electrodes 12 (customzied) 16(customized) 25(customized)
welding speed 40-60times/min 40-60times/min 40-60times/min
Cooling system Water cooling transformer Water cooling transformer Water cooling transformer
Controlling system PLC touch screen PLC touch screen PLC touch screen



Note: All the parameters can be customzied according to customers' requirement.



After-Sales Service


1.If the buyers need, we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination port.

2.Maintenance period :one year for whole machine except vulnerable parts

3.The numbers of technical persons: one technician per machine

4.The fees: the buyer have to pay the technical salary 80 USD per day, and the round-trip ticket, accommodation and other related fees.



During the maintenance period , if the parts are broken caused by the product problem, seller will offer the parts for free, if you need we assign the technicians to your factory, then you will pay some related fees.



FAQ


Q: How to get an accurate quotation?



1. Wire diameter : From mm to mm.

2. Line wire space : From mm to mm. Cross wire space : From mm to mm.

3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)

4. Do you want to weld wire mesh panel or mesh in coil ?

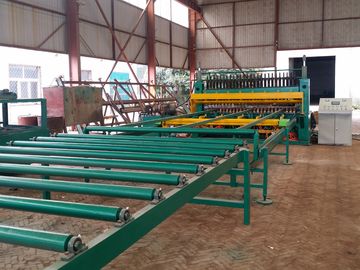

Deformed Steel Wire Mesh Machine , Concrete Rebar Mesh Welding Machine 0

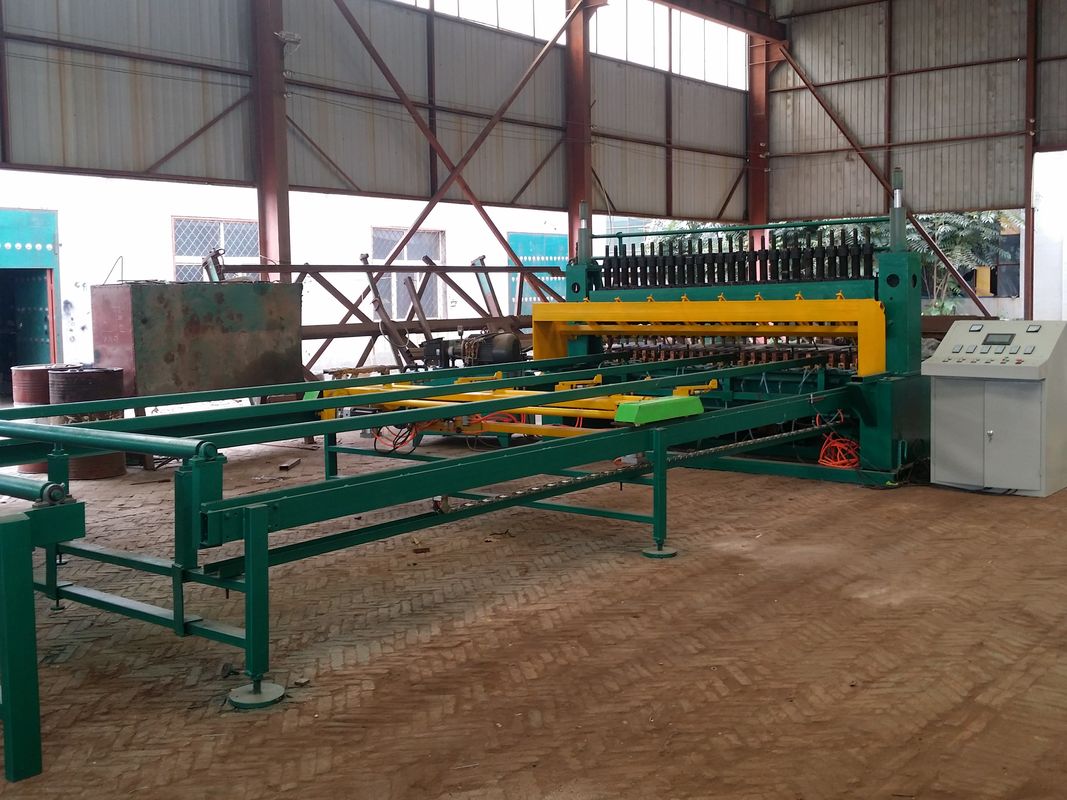

Deformed Steel Wire Mesh Machine , Concrete Rebar Mesh Welding Machine 1



Finished product & Application



Deformed Steel Wire Mesh Machine , Concrete Rebar Mesh Welding Machine 2

Deformed Steel Wire Mesh Machine , Concrete Rebar Mesh Welding Machine 3
