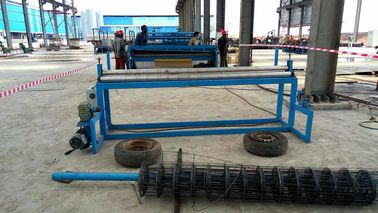

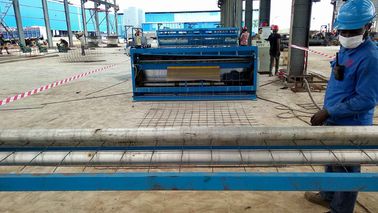

PLC High Efficiency Welded Wire Mesh Production Line For Coil Mesh
1.The control system adopts synchronous CNC technology,Mitsubishi PLC program and HMI. It is easy and convenient to operate with the touching screen.
2. The fallen wire system sends weft wires controlled by stepping motor instead of putting wefts wires by manual work, increasing productivity.
3. The sending mesh system controlled by computer can make—Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any character can be reach. Welding aperture can adjust randomly within range.
4. The main engine adopts imported and famous pneumatic components, making the service life long.
5. The welding wire is accurate and the welding points are firm for the big pressure.
6. This machine equips typical and efficient transformer, which gearless adjusted, enlarging the welding range.
7, Transformer:160KVA*3(25 welding heads) ——every 8 welding heads need a water cooling transformer.
8, Wire feeding way:The line wires from coil wire. and cross wires should be pre-straightened and pre-cut, then be put by manual work.
9, Material:Suitable for low carbon iron wire, deformed bar, round bar black annealed wire or galvanized (cold galvanized, hot galvanized) processing.
|Longitude Wire Space||50-200mm||50-200mm||50-200mm|
|Cross Wire Space||25-200mm||25-200mm||50-200mm|
|Width of Mesh||1200mm||1200mm||Max 2500mm|
|Welding Speed||60 times/min||45 times/min||45 times/min|
|Longitude Wire Feeding||From Wire Coils||From Wire Coils||From Wire Coils|
|Cross Wire Feeding||From Wire Coils||Pre-cut&Straightened||Pre-cut&Straightened|
|Rated Electrical Power||56kva*3pcs||85kva*3pcs||100kva*6pcs|
Strong welding, uniform mesh, flat surface, corrosion resistance, strong strength, strong protection.
It is used for construction materials of roof, tunnel, bridge construction, subgrade and construction site.
