Payment & Shipping Terms:
|Product Name:||Double Wire Chain Link Fence Machine||Width Of Mesh:||Max 4000mm|
|Capacity:||80--120 Square Meters Per Hour||Feeding Wire:||Double Wire|
|Control System:||PLC Control||Material:||Glavanized Wire.Low Carbon Wire.PVC Coated Wire|
chain link fence making machine,
diamond mesh fencing machine

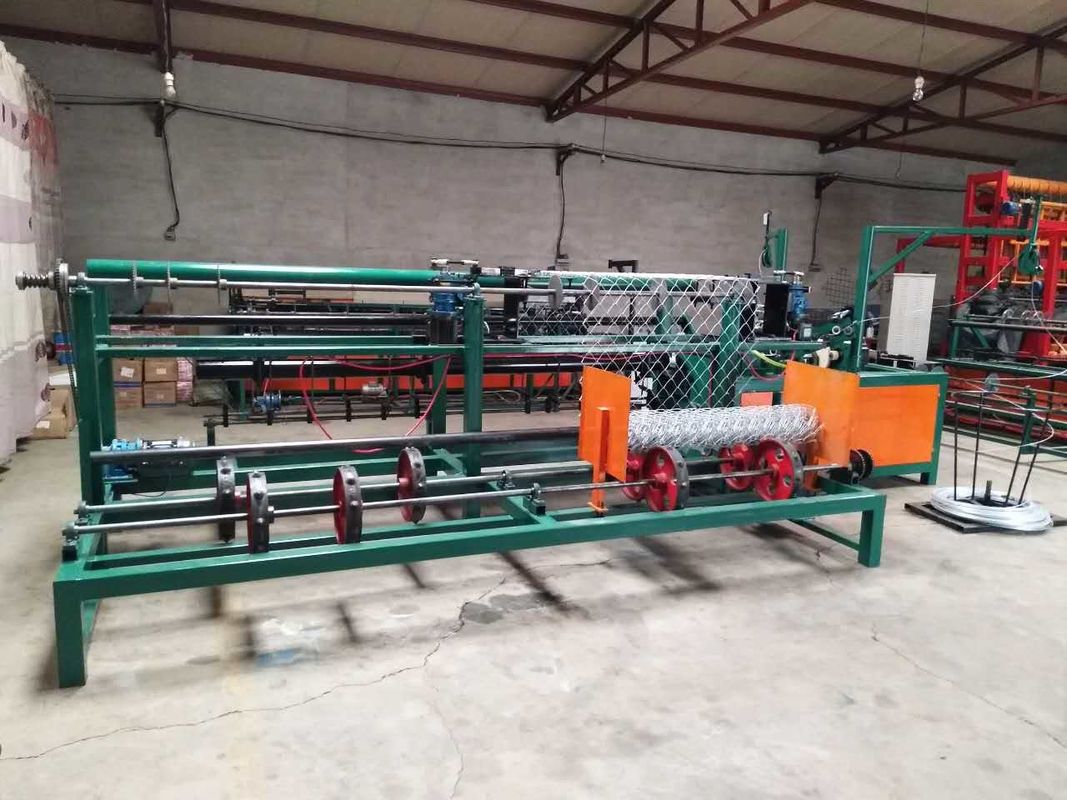

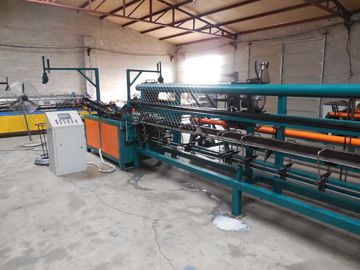

Double Wire PLC Control Full Automatic Chain Link Fence Weaving Machine For Playground
Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
The chain link is automatically wound to form rolls when the desired length is manufactured.
The machine is controlled by PLC automatic controller, so only one person is needed to operate it.One side or both sides of the end of net hole is twisted or with burr in edge.
Use compacting machine to make it into rolls.
The machine is controlled by PLC automatic controller
Germany Siemens PLC origin
The inverter is selected from high quality products
Low-voltage electrical from Germany Schneider
Electric&Machinery from Taiwan Teco Electric
Clutch from Taiwan YA CO,.LTD.
Suitable wire to the machine:
High-quality low-carbon steel wire ,Galvanized steel wire ,Stainless steel wire ,Aluminum alloy wire,Aluminum-clad steel wire.
Chain Link Fencing is extensively used as fences for playground and gardens,super highway,railway,airport,port,residence,etc.
|Wire Diameter||1.5-4mmFeeding Wire Numbers: one
(Note: Steel Wire Standard: GB3081-82 YB544-65; Material Standard: B1F-B3F
|Size of Mesh||20x20-100X100(mm)|
|Power and Rated voltage||6.0KW 380V,50HZ|
