|The Material Of Machine:||Steel Plate||Welding Transformer:||125KVA|
|Factory Power:||120KW||Dimension Of Workshop:||20m*6m*5m|
|Capacity:||270--300m Per Hour||Wire Diameter:||2.5--5.5mm|
chicken mesh making machine,
automatic wire mesh machine

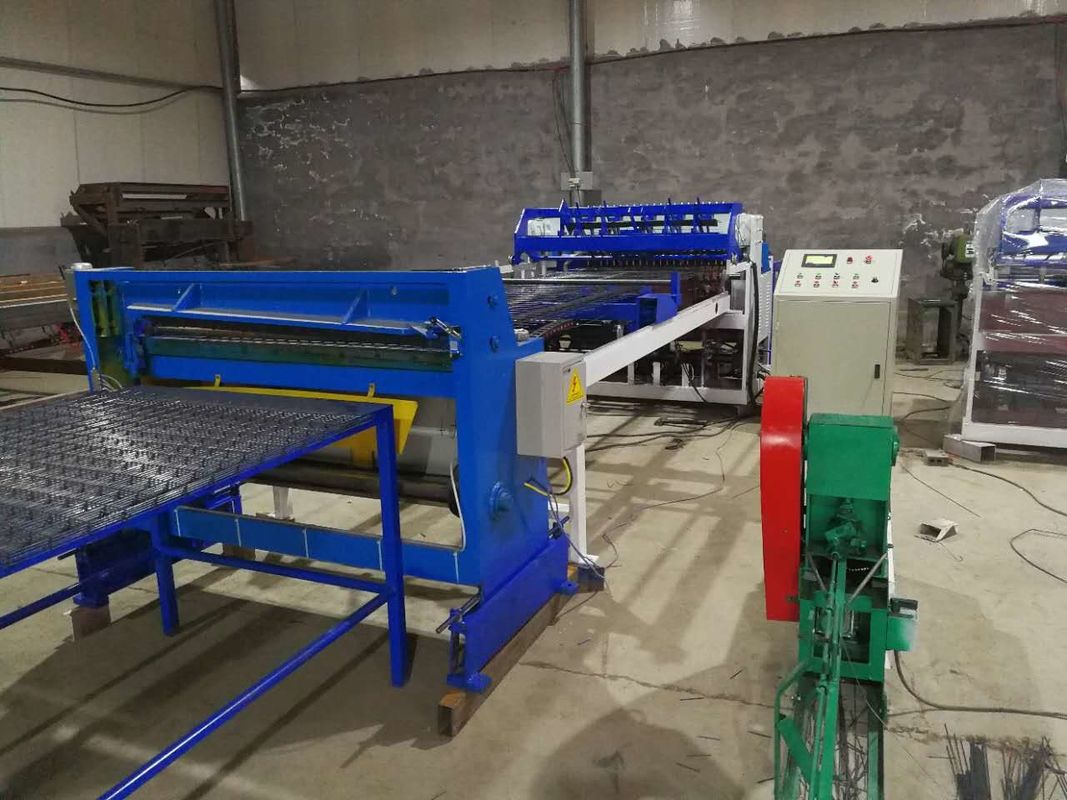

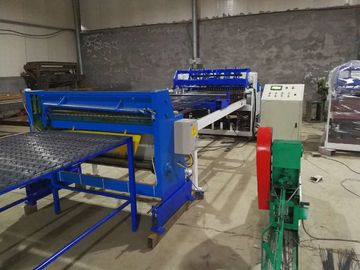

Fully Automatic Welded Wire Mesh Panel Production Line For Fence

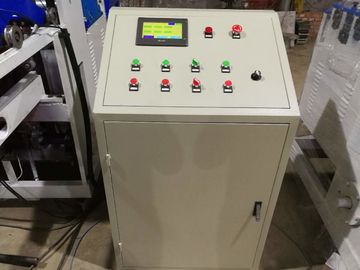

1.The control system adopts synchronous CNC technology, Panasonic PLC program and HMI. It is easy and convenient to operate with the touching screen.
2. Adjustable distance of the line wire that allows different opening size between the line wire distance, when input the distance of cross wire to computer, any mesh opening can be reach.
3. Mesh pulling system is controlled by panasonic servo motor.
4, Welding transformer:160KVA*3PCS (24welding electrodes) ——every 8 welding heads need a water cooling transformer.
5, Wire feeding method: The line wires from coil wire.The cross wires should be pre-straightened and pre-cut. The cross wire system is controlled by stepping motor. Sends weft wires one by one automatically.The machine will stop working when the cross wire used up in the hopper.
6, Material:Suitable for low carbon iron wire, black annealed wire or galvanized (cold galvanized, hot galvanized) processing.
|Wire diameter||2.5--5.5mm||Line wire form||From coil|
|Vertical wire distance||
|Weft wire form||Pre-cut wire|
|Horizontal wire distance||
|Rated voltage||380V 50HZ(customize)|
|Welding panel width||Max 1500mm||Transformer power||160KVAx3PCS|
|Welding speed||45--60 times/min||Panel Length||Max 6m|
|Machine weight||3.9T||Motor power||4.0KW|
The finished product-- wire mesh panel is widely used in construction. fence. house roof construction.
