Payment & Shipping Terms:
|Brand:||MLG||Thickness Of Wire:||2--6mm|
|Welding Speed:||40--60 Times Per Min||Mesh Size:||50*50mm--200*200mm|
|Application:||Used To Produce Bird Cage||Name:||Fence Mesh Welding Machine|
fence panel making machine,
fencing wire making machine

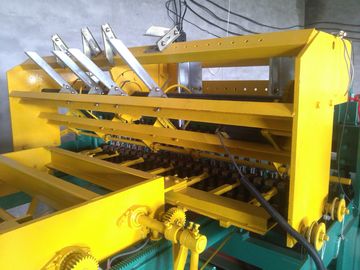

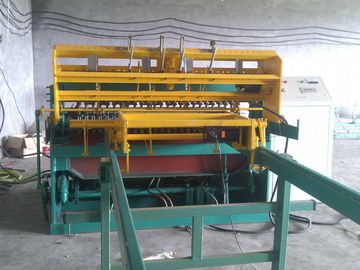

ISO9001 Guarding Fence Mesh Panel Welding Machine For Bird Cage
This machine adopts synchronous control technique, separate-control welding and welding time controlled by PLC digital programming system, once pressing, and separate welding. The input panel has two types touch screen and button, making operation more intelligent and rational. The welding power is electric power, weft fed from hopper driven by steeper motor, warp fed by brake motor driven car and the mesh pulled by the stepper motor driven car. The warp and the weft are both pre-straightened and pre-cut by the special straightening machine. The biggest advantage of this machine is that there is different weft spacing in the same mesh.
|Wire diameter||3.0-6.0mm||Warp form||Pre-cut wire|
|Weft spacing||25-200mm||Weft form||Pre-cut wire|
|Warp spacing||50-300mm||Rated voltage||380V|
|Welding spots||51||Mesh length||6m|
Products & Application:
Triangle fence and other fence products,for example fence (road, railway, mountains), fence, mesh used in construction.
Anping Molonggang Spot Welding Equipment Co., Ltd is specialized in producing Reinforcing Construction Mesh Welding Machine, Breeding Mesh Welding Machine, Steel Wire Mesh Welding Machine, Wire Mesh Fence Welding Machine, Automatic steel wire mesh welding machine, Brick Force Mesh Welding Machine, Cattle Fence Machine, Chain Link Mesh Machine, Welded Wire Mesh Machine, Fiberglass Mesh Production and so on.
The production of machines mainly used in the fence for highway, railway, airport, garden, hardware and wire mesh for construction, etc.
Our company has advanced production equipment, first-class technology and complete quality management system, succeeded in achieving ISO9001-2008 and CE. With good quality, reasonable price and excellent service, we have exported to USA, Mexico, New Zealand, Middle East, Italy, Turkey, Southeast Asia, Singapore, Kuwait, Thailand, Albania, Tanzania, India and Trinidad and Tobago, Spain, Australia, South Africa, Swaziland, Mozambique and other counties.
Our after-sales service team provides comprehensive support and assistance for WANZHONG's customers worldwide, both during the installation and commissioning period of our equipment, and during its entire service life. Highly qualified technicians are available to make service visits to customers and to carry out maintenance.
Spare parts are available, and can be purchased, for all equipment supplied by MOLONGGANG. And Wanzhong will give advice and provide assistance in handling spare parts requirements.
We would like to cooperate with business friends from home and abroad. For more information, please feel free to contact us.
Contact Person: Jack Zhang
