|Product Name:||Steel Bar Grating Spot Welding Equipment||Width Of Grating:||Max 1200mm|
|Length Of Grating:||Max 6000mm||Pitch Of Flat Bar:||2.5*25mm--6*65mm|
|Pitch Of Cross Bar:||6--8mm||Name:||Steel Plate Welding Machine|
steel bar mesh welding machine,
steel plate welding machine

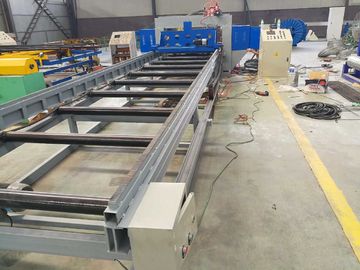

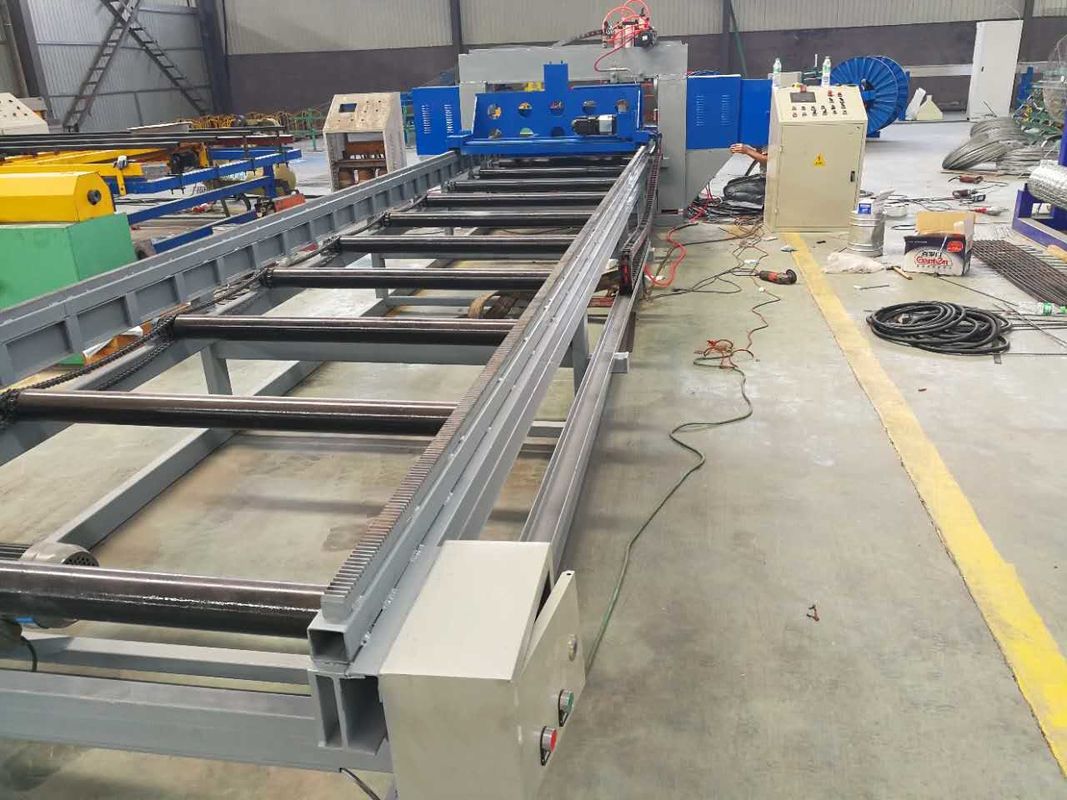

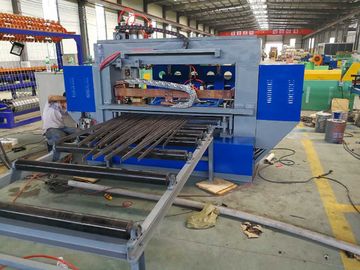

High Speed Steel Plate Mesh Welding Machine With High Degree Automation
1. Brief introduction:
Automatic steel plate mesh welding machine is a concentration of electric, hydraulic, resistance welding, machinery, etc., as one of the large welding equipment.With compact structure, welding strong function, high degree of automation, product quality, convenient operation and maintenance, strong productivity, etc.Intermediate frequency welder frequency is 1000 hz, large output current density.The secondary loop output impedance is small, welding current, low dissipation electrodes directly connected to the rectifier circuit, greatly saves the energy required during welding.
1. The machine include below: flat rack, hydraulic mold, servo stepper institutions, medium frequency transformer, host, intermediate frequency welding controller, control system.
2. Bonding host equipment structure, function and characteristics.
01, Twisted steel artificial planted, automatic into the material.
02, Flat steel manual locate
03, Automatic welding.
04, Before and after automatic distance control table.
05, Equipment parameter setting, using intelligent digital display.
06,Equipment, manual and automatic control.Operators can overcome the welding process changes brought about by the adverse factor, the operation is simple and convenient.
07, New design of the structure of a 200 kva transformer can production, to achieve the requirement of the pressure welding.Compared to large welding machine with 800 KVA transformer small investment.
The microcomputer controller
Products in Chinese liquid crystal microcomputer controller, the stable welding current, ensure the solder joints of beautiful, strong fastness.
In circulating cooling water system
The cooling circulating water with high water or water temperature automatic alarm., keep water temperature is less than 30 degrees, pure quality, so as not to reduce leakage and cooling water plugging.
1. Adopts Japan Mitsubishi PLC program and touch screen to control.
2. This machine adopts hydraulic device to control welding electrode; it can weld 3 points per time when flat bar thickness is 2.5-3mm,weld2 points per time when flat bar thickness is 3-5mm.weld 1point per time when flat bar thickness is 5-6mm.
3. The mesh pulling system adopts Japan Mitsubishi Panasonic servo motor, more stable, high precision.
4. This machine adopts specially designed mold to fix flat bars. The flat bar space is fixed, flat bar thickness and width can be adjusted within range on one mold.
5. The welding transformers are water cooling type.
6. Feeding way: the flat bar should be put by the worker; the twist bar should be straightened.
|Bearing flat bar||2.5*25-6*65mm|
|Pitch of flat bar :||25-60mm|
|Pitch of cross bar:||50-200mm|
|Production Capacity||30-100M2/shift (8hours )|
