Payment & Shipping Terms:
|Cut Rebar Diameter:||5--12mm||Cut Length:||Max 12m|
|Cut Capacity:||50m Per Min||Motor:||15KW|
|Name:||Automatic Steel Bar Cutting Machine||Dimension:||14*0.5*0.8m|
automatic steel bar cutting machine,
rebar straightening cutting machine

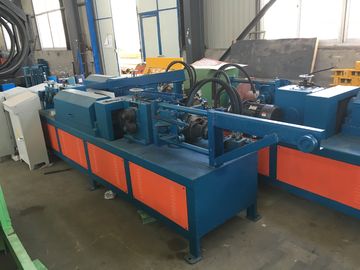

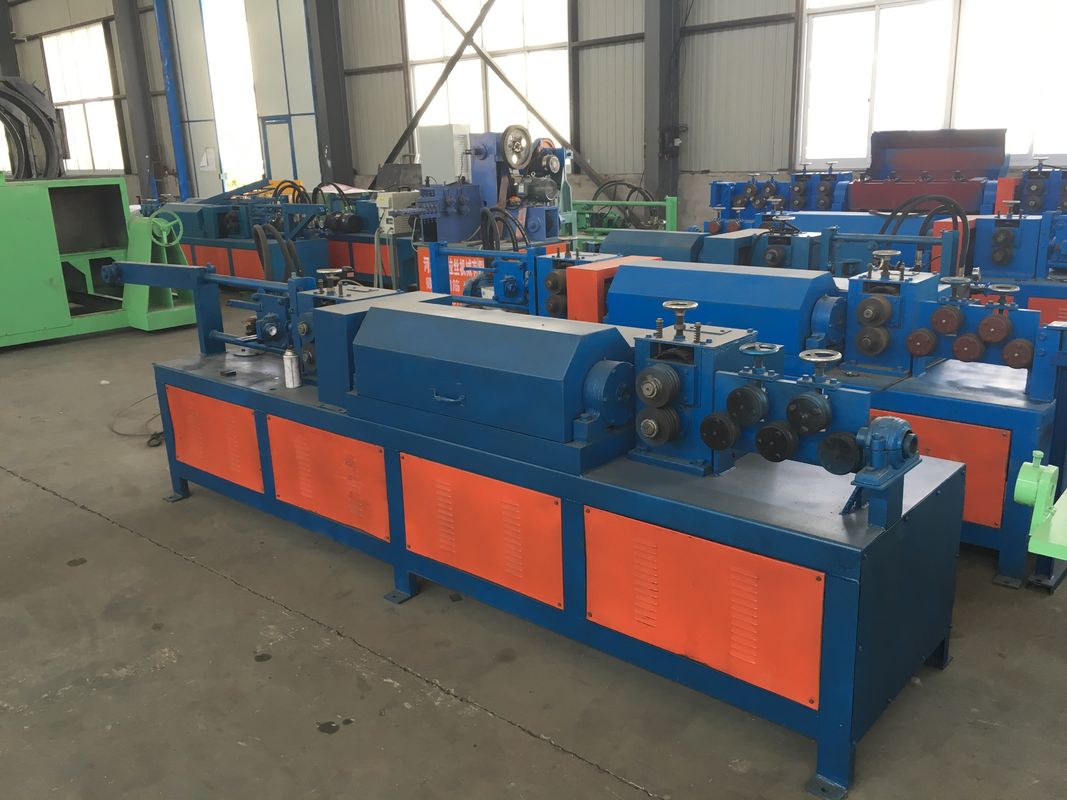

Hydraulic Rebar Straightening Cutting Machine For 5--12mm
Reinforced straightening cutting machine is a carefully developed a new generation of high-tech products for many years, with high efficiency, energy saving, material saving, section, and other significant features of reasonable structure, in the domestic leading level.
1. the configuration of the world's most advanced delixi electric control system, overload, underload, lack of phase, short circuit, overheat protection, comprehensive scale counts, start, stop, full automation, the machine in length, output after boot, make can automatically complete straightening shear, counting and other working procedures, automatic stop after finish production, one person operation, can save the workers' wages in a greater degree.
2. Cut off the hydraulic servo cutting technology, not only save a large amount of loss of tools, and fundamentally eliminate the phenomenon of even cutting and cutting continuously, without reinforcement and a short break, and accurate cut-off, zero waste, material left powerusageeffectiveness by general adjusting cutter of 98% to 98%, that alone, you can save an annual output of 1000 tons of steel manufacturer 2-30000 yuan, while working noise is extremely low, accord with environmental protection requirement.
3. Straightening roller, the introduction of Germany's high-tech balance technology production series straightening machine (domestic only will this technology is used for straightening machine production), micro balance reached 99%, the straightening roll drum rotating speed is generally 2-3 times that of the straightening machine, speed of 50 meters per minute, is straightening machine as well as a power of 2 to 3 times, output can reach more than 10 tons, and the machine work with low noise, small vibration, can not break machine work day after day
4. Process: the hyperbolic straightening roller structure, ensure the machine on straight cold rolled ribbed steel bar, can ensure maximum wire surface geometry and mechanical properties, does not damage of rib, straightening range is wide, but straightening ￠4 mm, 12 mm wire, cold drawing mild steel wire, high strength steel, cold rolled ribbed steel bar, etc.
5. Straightening effect: the straightening effect is good, the rebar straightening is high, and every meter is less than 2mm, and there is no abrasion on the surface.
|Wire diameter||5.0--12mm||Cut wire length||Max 12m|
|Total weight||1500KG||Rated voltage||380V 50Hz(customized)|
Contact Person: Jack Zhang
