|Product Name:||Steel Bar Mesh Welding Machine||Width Of Mesh:||Max 2500mm|
|Mesh Size:||100*100--300*300mm||Length Of Mesh:||6m|
|Motor:||15KW||Welding Speed:||50 Times Per Min|
|Power Consumption:||10--13KW Per Hour||Transformer:||125KVA*12|
automatic steel bar cutting machine,
rebar straightening cutting machine

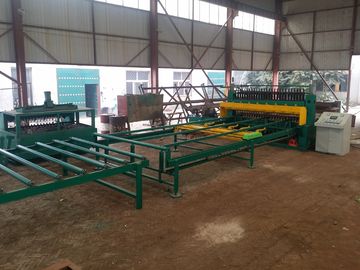

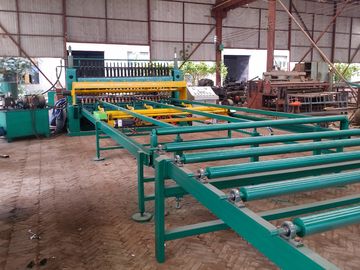

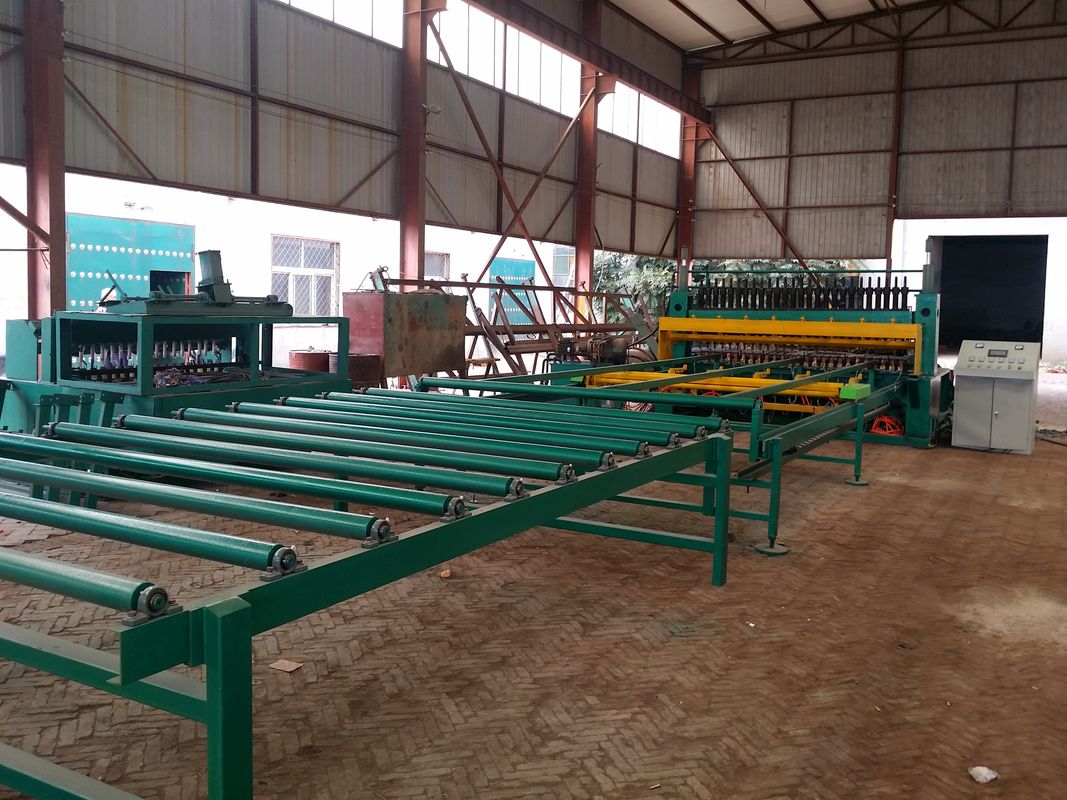

Automatic steel Bar / Reinforcing Welded Mesh Machine (3m Width)
Function features-- Automatic Welded wire Mesh Machine
1. This kind of wire mesh welding machine is our latest developed reinforcing mesh welding machine.
2. The line wire and the weft wire of wire mesh welding machine are pre-straight and pre-cut.
3. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto.
4.The wire mesh welding machine welding power comes from the cylinders. It’s easy to control the welding pressure .
5. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.
6. The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .
7. The welding part of wire mesh welding machine is used the springiness input wire trunking that makes the welding copper use for long time.
8. This wire mesh welding machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.
|Wire diameter||5~12mm||Line wire form||pre-cut wire|
|Weft wire distance||100--300mm||Weft wire form||pre-cut wire|
|Line wire distance||100~300mm||Rated voltage||380V 50Hz|
|Welding net width||2500mm||Rated power||12*125KVA|
|Welding speed||50times/min||Overall dimention||24*6.0*2.65m|
|Line wire No.||24||Wire net length||6000mm|
