|Wire Diameter:||4--8mm||Width Of Mesh:||Max 2500mm|
|Mesh Opening:||50*50 Mm--300*300 Mm(adjustable)||Length Of Mesh:||6m|
|Welding Transformer:||160KVA*8PCS||Welding Speed:||40--70 Times Per Min|
wire mesh making machine,
chicken mesh making machine

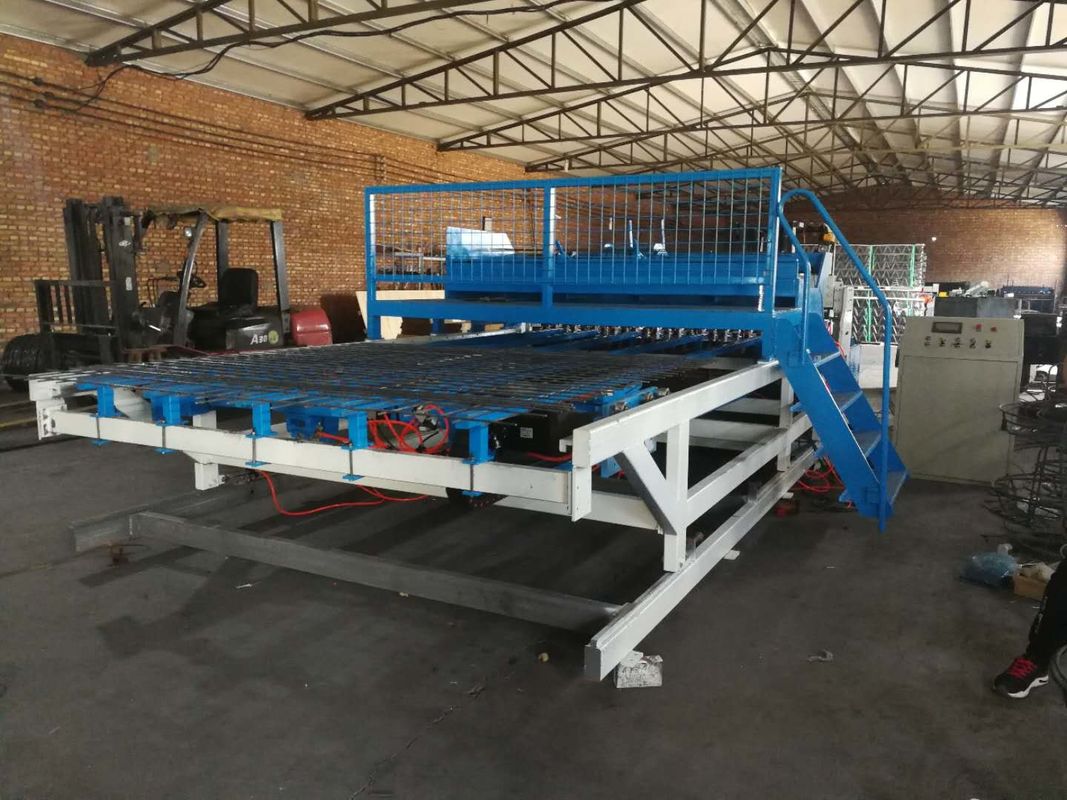

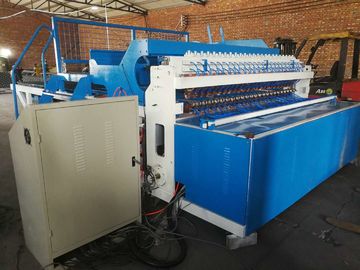

Panasonic PLC Welded Mesh Panel Welding Machine For Wire Diameter 4--8mm
1. This welded mesh panel welding machine adopts synchronous control technique. The center-control and welding time are composed of Panasonic PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time.

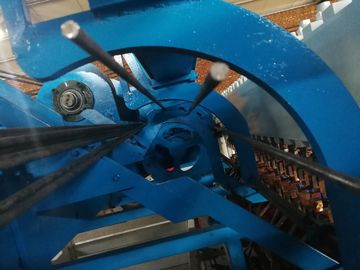

2. The cross wire will be fed automatically with the help of a stepper motor. Falling wire automatically. The machine stops automatically if cross wires are used up in the hopper. The hopper can load 1.5T wire.
3. Adjustable longitude wire space and cross wire space.The line wire and the cross wire are pre-straightened and pre-cut. The greatest advantage is that you can adjust the distance of cross wire at random on the same one mesh panel.For example, 50x100, 50x150, 50x200, 50x250, 50x300 in one mesh panel.
4. Mesh pulling system is controlled by servo-motor that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.
5. The welding transformer is working one by one. Not working together.Welding pressure Adjustable by springs.
6. The welded mesh panel welding machine adopts an integrated water-cooled transformer, whose voltage is 160 KVA. The welding transformer is water-cooling.
7. The welded mesh panel welding machine uses a copper sheet to connect the welding head and the transformer. Has a long service life.
8. Welding time and welding current are regulated separately. It is easy to establish when the diameter of the wire is changed.
9. The power transformer must be at least 160KVA, and the maximum distance between the power transformer and the machine must be 80 m.
10. Material:Suitable for low carbon iron wire, ribbed wire, cold drawn wire,or galvanized (cold galvanized, hot galvanized) processing.
11. Workforce: 2-3 people.
|Wire diameter||4.0--8.0mm||Line wire form||Pre-cut wire|
|Line wire distance||50--300mm(adjustable)||Weft wire form||Pre-cut wire|
|Cross wire distance||50--300mm(adjustable)||Rated voltage||380V 50HZ|
|Welding net width||2500mm||Welding transformer||160KVAx8PCS|
|Welding speed||40--70 times/min||Panel mesh Length||Max 6m|
|Welding spots||48||Overall dimension||9.5m*3.2m*2.1m(L*W*H)|
|Machine weight||3.9T||Motor power||7.5 KW|
|Workshop||16m*5m*4m(L*W*H)||Power supply||at least 160KVA|
The finished product is widely used in fence protection, airport, railway, road construction, bridge construction, roof and wall construction etc.
