|Wire Diameter:||2--5mm||Width Of Mesh:||Max 2500mm|
|Mesh Opening:||50x50mm--300x300mm||Length Of Mesh:||3m|
chicken mesh making machine,
automatic wire mesh machine

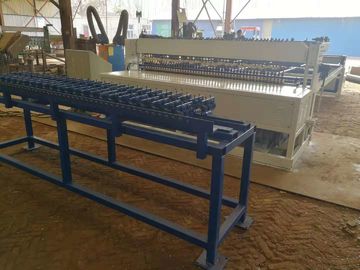

PLC Panasonic Automatic Wire Mesh Welding Machine For Mesh Size 50x200mm
1 This is our latest technology PLC Panasonic Automatic Wire Mesh Welding Machine For Mesh Size 50x200mm.
2 The line wire is from coil wire, the cross wire is pre-straighten and pre-cut. Then manual to feed the cross wire to the hopper device, falling wire automatically. The cross wire is controlled by stepping motor. And the line wire through the straighten wire deice. Make the wire more straighten then go to the wire mesh welding machine to welding into mesh panel.
3 The automatic wire mesh welding machine can make max width of mesh panel 2.5m. The mesh opening is min 50x50mm. max up to 300x300mm. the mesh size is adjustable according to your required.
4 The automatic wire mesh welding machine can make the length of mesh panel as per your required size. Just to input the mesh size and quantity and length of mesh panel into control cabinet. The mesh cutting machine will cut the mesh panel as per your required size.
5 The automatic wire mesh welding machine equips 125KVA*8PCS welding transformer. And the welding transformer is water cooling.
6 The pulling mesh system is recycle, sabe much more time.
7 The pulling mesh system is controlled by servo motor (Panasonic brand)
8 The PLC use Panasonic brand. which is famous brand in the world.
9 All the electrical parts use Schneider in the control cabinet.
10 The suitable material:low catbon wire, galbanized wire. stainless steel wire.
|Wire diameter||2.0--5.0mm||Line wire form||From coil|
|Line wire distance||50--300mm||Weft wire form||Pre-cut wire|
|Cross wire distance||50--300mm||Rated voltage||380V 50HZ|
|Welding mesh width||Max 2400mm||Transformer power||6PCSX125KVA|
|Welding speed||45--60 times/min||Length of mesh||3m|
|Machine weight||4.6T||Motor power||4.0KW|
|Capacity||270--300m per hour||Dimension of workshop||16m*5m*4m(L*W*H)|
Highway guardrail railway guardrail airport guardrail municipal guardrail construction network used in coal mine roof, tunnel, bridge construction, subgrade network bars, construction site prison protection network.
