|Warp Spacing:||50--200mm||Weft Spacing:||50--200mm|
|Wire Diameter:||2.5--6.0mm||Width Of Mesh:||Max 2400mm|
|Welding Speed:||45--60 Times Per Min||Name:||Fencing Wire Making Machine|
automatic wire mesh machine,
chicken mesh making machine

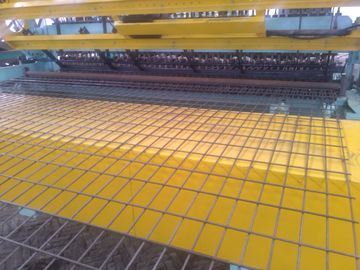

Construction Reinforcing Steel Mesh Plant For 2.5--5.0mm
Weft feeding method
The construction reinforicng steel mesh machine equipped with automatic straightening cutting device. This device straighten and cut weft wire into fixed length. Then worker put those weft wires into hopper, the weft wires will fall automatically.
Warp feeding method
Coil wires are put on the wire tray. Firstly, let coil wires through straightening device,this device will make the coil wire become straight. Then let coil wire through into warp hole, finally the entire welding process is automatic.
The machine adopts synchronous and PLC control technique. The welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper. Welding time and sub-control welding adopt Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel. What’s more, the below electrodes installed water-cooling equipment, which reduce the loss and ensure welding quality.
Pulling mesh system
The mesh pulling system is controlled by servo motor, which makes the pulling mesh aperture more standard and accurate. This automatic pulling device can be separated from the mesh welding machine.

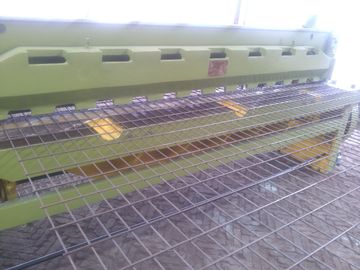

Automatic mesh panel cutting machine
This machine can weld continuous wire mesh sheets. After the wire mesh sheets enter into the automatic cutting machine, the cutting machine can cut thewire mesh sheet into fixed-size according to you need.
Construction Reinforcing Steel Mesh Plant Material suitable for low carbon wire, galvanized wire and so on.
|Number of Electrodes||24||32||40||48|
|Max Mesh Width||1200mm||1600mm||2100mm||2500mm|
|Cross Wire Space||50-200mm||50-200mm||50-200mm||50-200mm|
|Line Wire Space||50-200mm||50-200mm||50-200mm||50-200mm|
|Cross Wire Feeding||Pre-cut||Pre-cut||Pre-cut||Pre-cut|
|Line Wire Feeding||Coil||Coil||Coil||Coil|
|Control System||PLC or SCM||PLC or SCM||PLC or SCM||PLC or SCM|
wire straightening and cutting machine,,cutting mesh machine,line wire straightening device,pay-offs
The steel mesh is used for pavement, Bridges, airports, gardens, public places, squares, highways, railways, highways, factories and other isolates.
