|Application:||For Protection||Raw Material:||Low Carbon Wire, Deformed Bar. Galvanized Wire|
|Panel Size:||1800mmx3000mm||Mesh Opening:||76.2x12.7mm|
|Wire Diameter:||2.5--6.0mm||Capacity:||260m Per Hour|
fence panel making machine,
fencing wire making machine

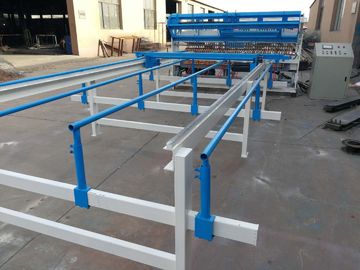

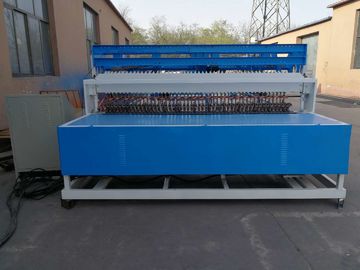

Small Mesh Size Welded Fence Mesh Panel Welding Machine For Anti-Climb Mesh
Function features: Servo motor pulling mesh panel auto back and forth.
1. This machine adopts synchronous control technique. The center-control and welding time are composed of Mitsubishi PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable.
2. The cross wire system is controlled by stepping motor. The falling cross wire is automatically one by one. Increasing productivity.The machine stops automatically if cross wires are used up in the hopper.
3.Adjustable longitude wire space and cross wire space. The greatest advantage is that you can adjust the space of longitude wire space and weft wire space at random on the same one piece mesh panel.
3. Mesh pulling system is controlled by servo-motor (Panasonic brand) that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.
4. Welding transformer: 125KVA*6PCS(48 welding spots.) every 8 welding spots need one water cooling transformer.
5. Wire feeding way:The line wires and cross wires should be pre-straightened and pre-cut, then be put by manual work.
6. Material:Suitable for galvanized wire, low carbon iron wire, ribbed wire, cold drawn wire and so on.
|Wire diameter||2.5--6.0mm||Line wire form||Pre-cut wire|
|Line wire distance||76.2--200mm(adjustable)||Weft wire form||Pre-cut wire|
|Cross wire distance||12.7--200mm(adjustable)||Rated voltage||380V 50HZ|
|Welding net width||Max 2500mm||Welding transformer||6X125KVA|
|Welding speed||40--60 times/min||Panel mesh Length||Max 6m|
|Machine weight||3.9T||Motor power||4.0 KW|
Bridge anti-climb guarding & guard safety screening;
Sub-station Security wire Fencing;
Prison Security welded wire Fencing;
Factory Machine guards;
Walkway security fencing;
Airport security fencing;
358 wire mesh fence gates;
