Easy Operation Automatic Welded Wire Mesh Machine For 1 / 2 Inch 1 Inch Mesh Size

Easy Operation Automatic Welded Wire Mesh Machine For 1 / 2 Inch 1 Inch Mesh Size

Easy Operation Automatic Welded Wire Mesh Machine For 1 / 2 Inch 1 Inch Mesh Size
Easy Operation Automatic Welded Wire Mesh Machine For 1 / 2 Inch 1 Inch Mesh Size Easy Operation Automatic Welded Wire Mesh Machine For 1 / 2 Inch 1 Inch Mesh Size

Large Image :  Easy Operation Automatic Welded Wire Mesh Machine For 1 / 2 Inch 1 Inch Mesh Size Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: MLG
Certification: CE
Model Number: MLG-DHW

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Covered by plastic film on the machine put into 20 ft container
Delivery Time: 20 days after receiving deposit or L/C.
Supply Ability: 4--5 sets per month
Detailed Product Description
Product Name: Welded Mesh Production Line Wire Diameter: 0.4--2.5mm
Mesh Size: 1/4inch 1/2inch 1inch 2inches Welding Speed: 80--120 Times Per Min
Power Consumption: 2--4 KW Per Hour Length Of Mesh: 120m
High Light:

wire cage welding machine

,

wire cage making machine

Excellent Quality Automatic Welded Mesh Production Line For 1/2inch 1inch





Machine Description



1. Both of the longitude wire and cross wire are fed from wire coils automatically.



2. The raw material is suitable for black wire, galvanized wire or stainless steel wire.



3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.



4. The mesh roll length can be set by counter switch on the control panel.



5. The welding transformers have 8 degrees and can be adjusted for different wire diameters.



6. The welding time and welding current can be adjusted on the control panel to guarantee welding solid.



7. It has advantages such as reasonable design, low noise, stable working, easier operation and electro-magnetism speed adjustment.



Technical parameters



Model MLG-DHW-1 MLG-DHW-2 MLG-DHW-3
Wire diameter 0.5-0.8mm 0.8-1.8mm 0.8-1.8mm
Mesh size 1/4"-1/2" 1/4"-1/2" 1"-6"
Mesh width 3feet,4feet 4feet,5feet 5feet,6feet,7feet
Motor 2.2kw 2.2kw 2.2kw,4.0kw
Welding speed max 75rows/min max 120rows/min max 80rows/min
Overall dimension 2.3*1.3*1.4m

2.0*1.50*1.6m

3.0*1.75*1.6m

2.0*1.50*1.6m

3.0*1.75*1.6m

Weight 1.5T 2T,2.5T 2T,2.5T,3T,3.5T
Transformers 50kva*3 65kva*4;65kva*5 65kva*4;65kva*5

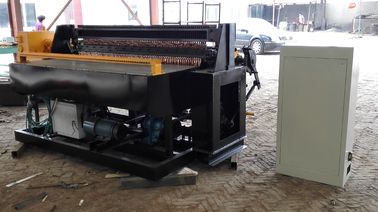

Easy Operation Automatic Welded Wire Mesh Machine For 1 / 2 Inch 1 Inch Mesh Size 0

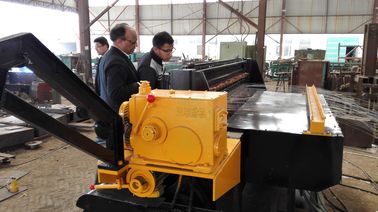

Easy Operation Automatic Welded Wire Mesh Machine For 1 / 2 Inch 1 Inch Mesh Size 1

Easy Operation Automatic Welded Wire Mesh Machine For 1 / 2 Inch 1 Inch Mesh Size 2
