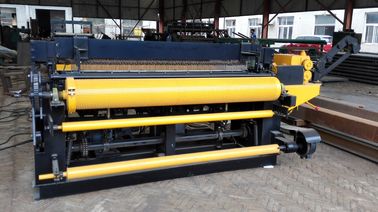

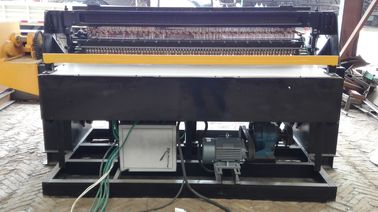

PLC Control Fully Automatic Welded Wire Mesh Machine With Hole Size Is Adjustable

PLC Control Fully Automatic Welded Wire Mesh Machine With Hole Size Is Adjustable

PLC Control Fully Automatic Welded Wire Mesh Machine With Hole Size Is Adjustable
PLC Control Fully Automatic Welded Wire Mesh Machine With Hole Size Is Adjustable PLC Control Fully Automatic Welded Wire Mesh Machine With Hole Size Is Adjustable

Large Image :  PLC Control Fully Automatic Welded Wire Mesh Machine With Hole Size Is Adjustable Get Best Price

Product Details:

Place of Origin: China
Brand Name: MLG
Certification: CE
Model Number: DNHW-1

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: cover plastic film packing put into 20feet container
Delivery Time: 25 days after receiving deposit or L/C.
Supply Ability: 4--5 sets per month
Detailed Product Description
Model: DNHW-1 Wire Diameter: 0.9--2.5mm
Width Of Mesh: 1.5m To 2.0m Mesh Size: 12.5*12.5mm--50*50mm
Motor: 4.0KW 1.5KW Transformer: 70KVA*7
Welding Spots: 161 PCS Dimension: 3.6m*1.7m*1.6m
High Light:

wire mesh spot welding machine

,

wire cage making machine

PLC Control Automatic Welded Wire Mesh Manufacturing Machine Best Price





Function features:



1. It has advantages such as reasonable design, easy operation, low noise, high stability, low cost, high productivity, firm welding points, welding uniformity and good surface.



2. When the mesh is welding, the rolling mesh machine is also working to roll mesh together. You can put the mesh length number into control cabinet.



3. The hole size is adjustable and precise and the mesh width and length can be adjustable according to customer’s requirements on the control cabinet.



4. This equipment is mechanical-electrical integrative welding machine.



5. The machine can straighten and send cross wire automatically, weld mesh automatically, cut edge automatically, roll mesh automatically.while welding mesh working,the rolling mesh also work together.



6. Material:Suitable for carbon steel wire, or galvanized (cold galvanized, hot galvanized) processing.



Main parameter



Wire diameter 0.9--2.5mm Line wire form From coil wire
Line wire distance 12.5mm--60mm (adjustable) Weft wire form From coil wire
Weft wire distance

12.5mm--60mm

(adjustable)

Rated voltage 380V 50HZ 3 Phase
Welding mesh width 1.5m to 2.0m Welding transformer 7X75KVA
Welding speed 80--120 times/min Mesh length 50--120m
Welding spots 161 Dimension 3.6m(L)*1.6m(W)*1.7m(H)
Machine weight 3.5T Motor 4.0KW 1.5KW



After sales service



We will give the manual operations and video to buyer. We will send our technician to your factory to

install the machine and teach your worker how to operate the machine until worker can operate the

machine in person if possible. But buyer is responsible for the round-trip flight ticket fee. Food and hotel. One day pay $100 to the technician. The guaranty is one year.

Within one year. If the machine has any problems. We will send our technician to mend the machine

free of charge
