|Power Consumption:||8--10 KVA Per Hour||Motor:||4KW|
|Welding Speed:||40--60 Times Per Min||Mesh Size:||50*50--300*300mm|
|Length Of Mesh:||According To Your Requirement||Color:||According To Your Request|
wire mesh making machine,
automatic wire mesh machine

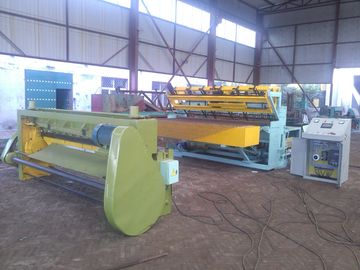

Production Line For Making Wire Mesh Panel 50*200mm Made In China
1.The control system adopts synchronous CNC technology,Mitsubishi PLC program and HMI. It is easy and convenient to operate with the touching screen.
2. The fallen wire system sends weft wires controlled by stepping motor instead of putting wefts wires by manual work, increasing productivity.
3. The sending mesh system controlled by computer can make—Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any character can be reach. Welding aperture can adjust randomly within range.
4. This machine equips typical and efficient transformer, which gearless adjusted, enlarging the welding range.
5, Transformer:160KVA*6(48 welding heads) ——every 8 welding heads need a water cooling transformer.
6, Wire feeding way:The line wires from coil wire. and cross wires should be pre-straightened and pre-cut, then be put by manual work.
7, Material:Suitable for low carbon iron wire, deformed bar, round bar black annealed wire or galvanized (cold galvanized, hot galvanized) processing
|Wire diameter||2.5--6.0mm||Line wire form||From coil|
|Line wire distance||50--300mm||Weft wire form||Pre-cut wire|
|Cross wire distance||50--300mm||Rated voltage||380V 50HZ|
|Welding mesh width||Max 2500mm||Transformer power||6X160KVA|
|Welding speed||40--60 times/min||Length of mesh||According to your requirement|
|Machine weight||3.6T||Motor power||4.0KW|
The steel mesh is used for pavement, Bridges, airports, gardens, public places, squares, highways, railways, highways, factories and so on.
