Product Details:
Payment & Shipping Terms:
|
| Feeding Of Wire: | Single Wire | Power Of Servo Motor: | 5.5KW |
|---|---|---|---|
| Color: | Yellow | Width Of Mesh: | Max 4000mm |
| Mesh Opening: | According To Your Requirement | Capacity: | 80--120 Square Meters Per Hour |
| High Light: | chain link fence weaving machine,diamond mesh fencing machine |
||

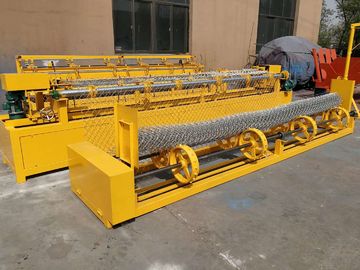

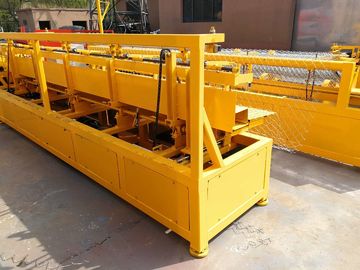

Single Wire Automatic Chain Link Fence Machine For Wire diameter 1.6--4.0mm
Product description
1. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE take place.different gap sized;
2. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process.
3. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place;
4. The material is high-quality low-carbon steel wire,galvanized steel wire ,stainless steel wire,aluminum alloy wire ,PVC coated wire;
Technical parameter
| Type | MLG-WHJ-4000 |
| Mesh width | Max 4000mm |
| Mesh opening | 25--100mm |
| Wire diameter | 1.8-4.0mm (Max.5.5mm) |
| Production | 80-120m2/h |
| Weight | 4200kg |
| Power |
9kw
|
Advantage:
1. The chain link is automatically wound to form rolls when the desired length is manufactured;
2. The machine is controlled by PLC automatic controller,so only one worker is needed to operate it;
3. Electric system:
--Japan mitsubishi PLC origin
--Servo motor, with fan cooling system,
--Low-voltage electrical from Germany Schneider
--Electric&Machinery from Taiwan Teco Electric
--Clutch from Taiwan Ya Co.,ltd
4. The chain link fence machine is automatically wound to form rolls when the desired length is manufactured.
