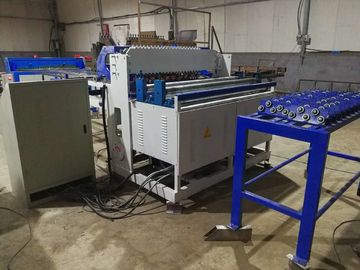

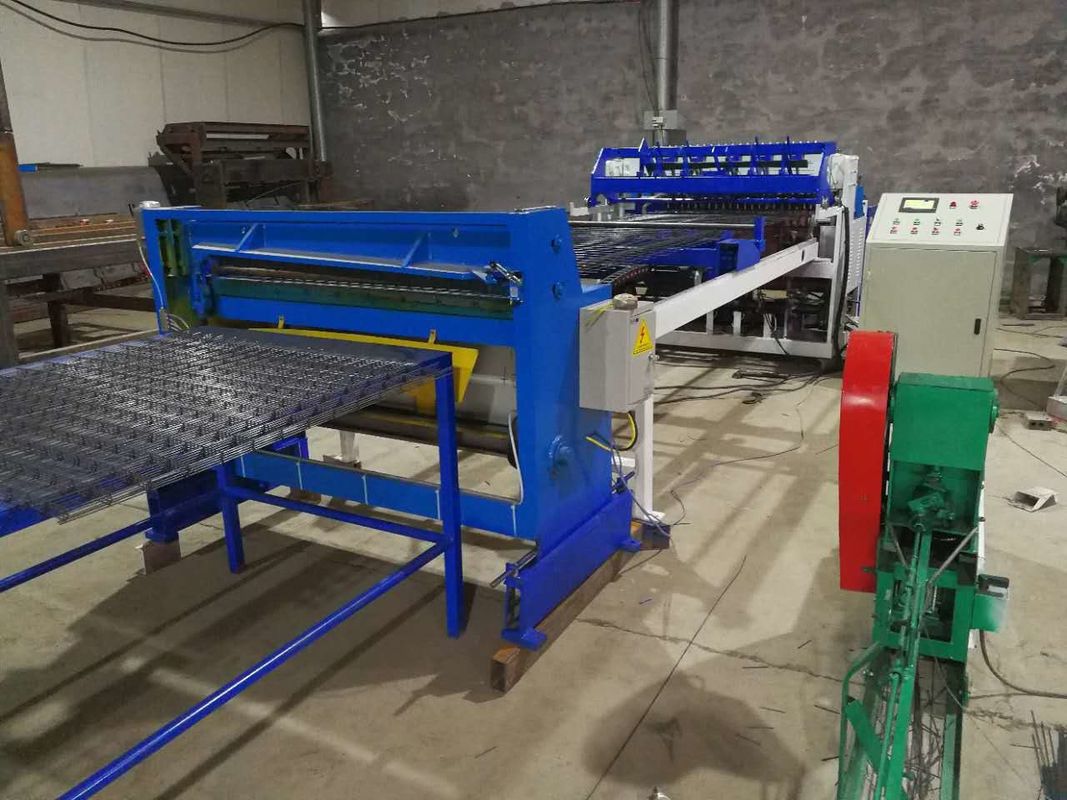

Panasonic PLC Multi Spots Welded Mesh Welding Machine For 1500 mm Width

Panasonic PLC Multi Spots Welded Mesh Welding Machine For 1500 mm Width

Panasonic PLC Multi Spots Welded Mesh Welding Machine For 1500 mm Width
Panasonic PLC Multi Spots Welded Mesh Welding Machine For 1500 mm Width Panasonic PLC Multi Spots Welded Mesh Welding Machine For 1500 mm Width

Large Image :  Panasonic PLC Multi Spots Welded Mesh Welding Machine For 1500 mm Width Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: MLG
Certification: CE ISO
Model Number: MLG-WHJ-1500

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Covered by plastic film on the machine put into 20 feet container
Delivery Time: 20 days
Supply Ability: 6--8 sets per month
Detailed Product Description
Wire Diameter: 2.5--5.5mm Line Wire Type: From Coil Wire
Cross Wire Type: Pre-cut Line Wire Distance: 50--200mm
Cross Wire Distance: 25--200mm Width Of Mesh: 1500mm
High Light:

wire mesh making machine

,

chicken mesh making machine

               Panasonic PLC Multi Spots Welded Mesh Welding Machine For 1500 mm Width



Product description



1. This multi spots welded mesh welding machine adopts synchronous control technique. The center-control and welding time are composed of PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding.

2. Welding by electromotor; the hopper adopts the step motor; brake motor wheels; pulling the wire mesh panel is controlled by the servo motor motor.

3. The greatest advantage is that you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.

4. This multi spots welded mesh welding machine equips typical and efficient transformer, which gearless adjusted, enlarging the welding range.
5. Mesh pulling system is controlled by servo motor.
6, Welding transformer:160KVA*2PCS (14welding electrodes) ——every 8 welding heads need a water cooling transformer.
7, Wire feeding method: The line wires from coil wire.The cross wires should be pre-straightened and pre-cut. The cross wire system is controlled by stepping motor. Sends weft wires one by one automatically.The machine will stop working when the cross wire used up in the hopper.

8, Material:Suitable for low carbon iron wire, black annealed wire or galvanized (cold galvanized, hot galvanized) processing



Technical parameter



Wire diameter 2.5--5.5mm Line wire form Coil wire
Welding aperture 50--200mm Weft wire form Pre-cut wire
Welding No. 24 Rated voltage 380V 50HZ
Welding net width 1500mm Rated power 3X125KVA
Welding speed 40--60 times/min Length wire net 3000mm



Advantage



1.PLC Panasonic brand Japan.
2. Frequency Converter Delta brand Taiwan
3 servo driver Panasonic brand. Japan
4 Touch screen Weinview brand Taiwan
5 Air switch Schneider France
6 low voltage apparatus Schneider France
7 ABB Schneider France



Panasonic PLC Multi Spots Welded Mesh Welding Machine For 1500 mm Width 0

Panasonic PLC Multi Spots Welded Mesh Welding Machine For 1500 mm Width 1

Panasonic PLC Multi Spots Welded Mesh Welding Machine For 1500 mm Width 2
