Product Details:
Payment & Shipping Terms:
|
| Weld Wire Diameter: | 3--6mm | Width Of Mesh: | Max 2500mm |
|---|---|---|---|
| Mesh Size: | 50*50--200*200mm | Length Of Mesh: | Max 6m |
| Name: | Steel Wire Mesh Welding Machine | Transformer: | 160KVA*6 With Water Cooling |
| Welding Speed: | 45--60 Times Per Min | Control System: | Mitsubishi PLC |
| Dimension: | 8.4m*3.1m*1.7m | Weight: | 4.2T |
| High Light: | fence panel making machine,mesh panel welding machine |
||
2500mm Width Automatic Grid Welded Panel Welding Machine For 3--6mm
1. Control system:Japan Panasonic intelligent PLC.
2. Touch screen: Weiview(Taiwan).
3. Low-voltage apparatus :Schneider(France). Variable-frequency drive:Delta(Taiwan)
4. Pneumatic components: Japan SMC,more stable.
5. Brake clutch motor connect the pricipal axis directely, stronger power.(Patent technology)
6. Cross wire feeding: Step hopper. Longitude wire feeding:Manually.
7. Mesh pulling:Panasonic(Japan) servo motor, great power and precision.
8. Transformer cooling:Water cooling,very efficient.
Low-carbon wire,black wire,stainless wire, galvanized wire.
| Model | MLG-WHJ-2500 | Welding electrodes | 48pcs |
| Wire diameter | 3mm-6mm | Rated electrical power | 85kva*6pcs |
| Longitude wire space | 50mm-300mm | Longitude wire feeding | Pre-straightened &pre-cut |
| Cross wire space | 25mm-300mm | Cross wire feeding | Pre-straightened &pre-cut |
| Width of mesh | 2500mm | Overall size | 8.4M*3.1M*1.7M |
| Welding speed | 45-60times/min | Weight | 4200kg |
When the wire diameter is 2.5mm-4mm, the minimum longitude space is 50mm.
When the wire diameter is 4mm-6mm, the minimum longitude space is 100 mm.
1. Safe and easy to operate
2. Inverter with adjustable frequency;
3. Energy saving 30%;
4. High speed and high productivity;
3. low noise;
4. low cost.

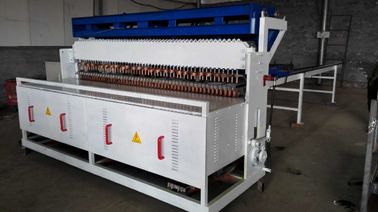

In front of the Fence Mesh Panel Welding Machine

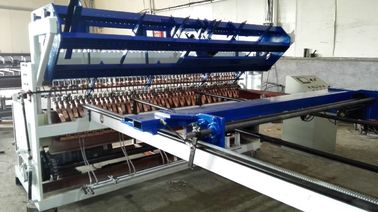

The Back of Fence Mesh Panel Welding Machine
Finished product
