2.5 - 6.0mm Wire diameter Wire Mesh Welding Machine / Grid Panel Welding Equipment

2.5 - 6.0mm Wire diameter Wire Mesh Welding Machine / Grid Panel Welding Equipment

2.5 - 6.0mm Wire diameter Wire Mesh Welding Machine / Grid Panel Welding Equipment
2.5 - 6.0mm Wire diameter Wire Mesh Welding Machine / Grid Panel Welding Equipment 2.5 - 6.0mm Wire diameter Wire Mesh Welding Machine / Grid Panel Welding Equipment

Large Image :  2.5 - 6.0mm Wire diameter Wire Mesh Welding Machine / Grid Panel Welding Equipment Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: MLG
Certification: CE
Model Number: MLG-2500

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Covered by plastic film on the machine put into 40 feet container
Delivery Time: 30 days
Supply Ability: 4--5 sets per month
Detailed Product Description
Current: 200A Welding Speed: 40--60 Times Per Min
Mesh Size: 50*50--300*300mm Width Of Mesh: 100--2500mm
Motor: 4KW Name: Fully Automatic Welded Wire Mesh Machine
High Light:

automatic wire mesh machine

,

chicken mesh making machine

Full Automatic Welded Grid Panel Welding Equipment For 2.5--6.0mm





Product description;



1, This is our latest develop welded grid panel welding equipment.

2, Adopt step motor to control the transversal wire downslide structure, take the transversal wire from bunker automatically, and put the transversal wire on the welding position exactly. The mesh side is regular, no need to cut.
3, The drawing mesh system adopt elastic tie bar and fixing cell opening equipment, (the design has acquired patent No. 200520024380.9) By adopting this system, adjust cell opening easily, high precision cell opening .And can be adjusted in the scope at random. No need to cut mesh sides.
4, The longitudinal wire is from coil wire, the transversal wire is from straightening and cutting wire

The main parameter :


Wire diameter: 2.5-6mm
Welding aperture: 50-200mm
Width of mesh: 1000-2500mm
Number of warp: 48
Welding speed: 45times/min
Overall diameter: 6*3.2*1.8mm


Applications:


Construction mesh , building roof mesh, floor warming mesh, seed-bed mesh, flower room mesh

we also accept special specification requirment for welded grid panel welding equipment.

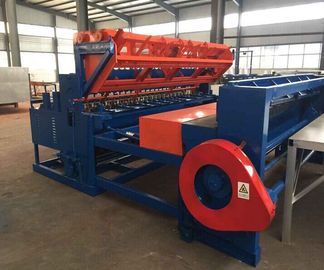

2.5 - 6.0mm Wire diameter Wire Mesh Welding Machine / Grid Panel Welding Equipment 0

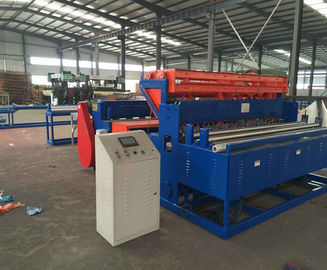

2.5 - 6.0mm Wire diameter Wire Mesh Welding Machine / Grid Panel Welding Equipment 1
