Product Name: | Automatic Chain Link Fence Machine | Mesh Size: | 25*25mm--100*100mm |
---|---|---|---|
Capacity: | 80--120 Square Meters Per Hour | Feeding Wire: | Double Wire |
Control System: | PLC Control | Material: | Glavanized Wire.Low Carbon Wire.PVC Coated Wire |
High Light: | chain link fence weaving machine,diamond mesh fencing machine |

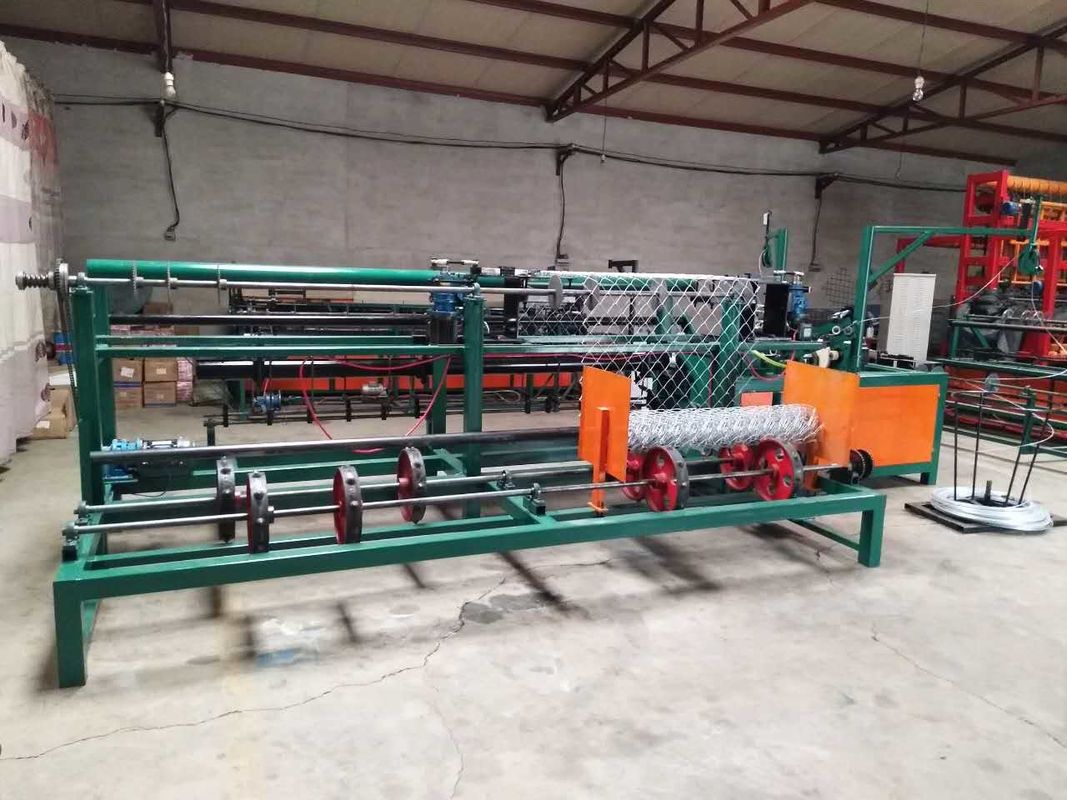

PLC Control Diamond Mesh Weaving Machine For PVC Coating Wire
Technical Description
Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
The chain link is automatically wound to form rolls when the desired length is manufactured.
The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
One side or both sides of the end of net hole is twisted or with burr in edge.
Use compacting machine to make it into rolls.
Electric System:
The machine is controlled by PLC automatic controller
Germany Siemens PLC origin
The inverter is selected from high quality products
Of Japan”YASKAWA”
Electrical
Low-voltage electrical from Germany Schneider
Electric&Machinery from Taiwan Teco Electric
Clutch from Taiwan YA CO,.LTD.
Suitable wire to the machine:
High-quality low-carbon steel wire ,Galvanized steel wire ,Stainless steel wire ,Aluminum alloy wire,Aluminum-clad steel wire.
Function:
Chain Link Fencing is extensively used as fences for playground and gardens,super highway,railway,airport,port,residence,etc.
Technical parameter
Capacity | 60-120(m2/hour) |
Wire Diameter | 1.5-4mmFeeding Wire Numbers: one (Note: Steel Wire Standard: GB3081-82 YB544-65; Material Standard: B1F-B3F |
Size of Mesh | 20x20-100X100(mm) |
Netting Width | 600-4000(mm) |
Power and Rated voltage | 6.0KW 380V,50HZ |
Dimensions |
3700*850* 1600mm 3500*1000* 1500mm |
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
6. Main machine packed by stretch film, PLC cabinet packed by air bubble film, spare parts loaded in to box.
