Product Details:
Payment & Shipping Terms:
|
| Product Name: | Construction Deformed Bar Mesh Welding Equipment | Wire Diameter: | 5--12mm |
|---|---|---|---|
| Width Of Mesh: | 2500mm | Mesh Size: | 100--300mm |
| Welding Speed: | 40--60 Times Per Min | Motor: | 15KW |
| High Light: | automatic steel bar cutting machine,rebar straightening cutting machine |
||

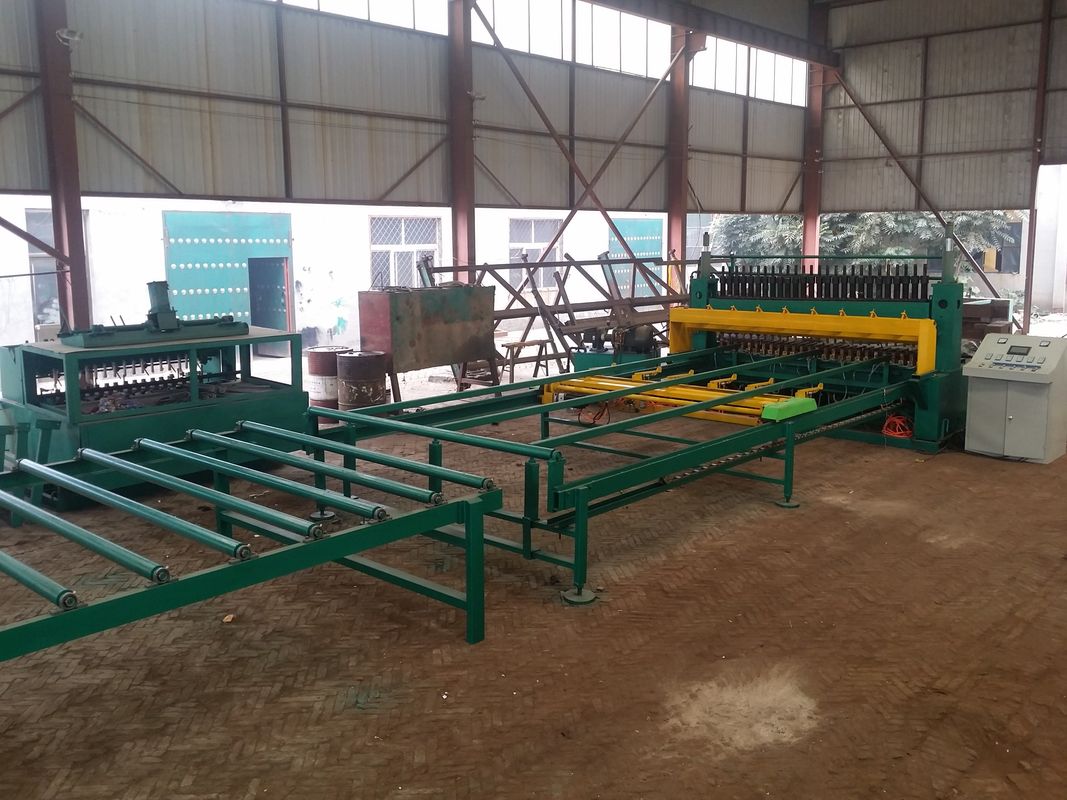

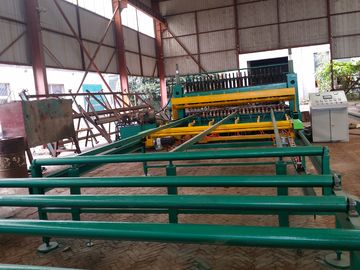

Automatic Construction Deformed Bar Mesh Welding Equipment 2.5m Width
Product description:
1, This machine is controlled by the special computer, the welding current and welding time in each welding transformer can be individually adjusted. The machine operating interface is made up with color touch screen and control buttons, easy to operate.
2, Host framework structure, stable performance, the welding pressure is continuously adjustable, solid and perfect welding spot.
3, Integrated deceleration electromagnetic brake motors for power, inverter control, adjustable speed.
4, Modular design for the upper and lower electrodes, convenient to adjust the mesh.
5, Weft-hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of disc device from the large hopper, and the weft hopper is installed in the removable pull rid, convenient to adjust and maintain.
6, The mesh pulling part driven by servo motor can be set a variety of weft space in the same mesh, pull the mesh continuously back and forth to extend the size of mesh, and use pneumatic clamping device to accurate weft spacing.
7, The warp feeding part driven by stepper motor can be fed the warps which a whole mesh needs when welding, so that the machine is very short interval of time.
| Machine Characteristic |
|
1.Control system: Panasonic (Japan) PLC program, Weinview (Taiwan) touch screen. 2.Wire feeding system: pre-straightened&pre-cut; longitude wire-Panasonic (Japan) servo motor sending; cross wire-hopper device with step motor. 3.Cooling system: water-cooling transformers and water-cooling welding electrodes. 4.Mesh pulling system: Panasonic (Japan) servo motor for pulling mesh. 5.Patent technology: Brake clutch motor connects the principal axis directly, working stable. 6.Machine material: thick steel plate and profile steel, high strength and toughness. 7.Welding electrodes: pure red copper, can be used 3-6 months. |
Main parameter:
| Wire diameter | 3-8mm/5-12 | Warp form | Pre-cut wire |
| Weft spacing | 100-300mm | Weft form | Pre-cut wire |
| Warp spacing | 100-300mm | Rated voltage | 380V |
| Width | 2200mm | Rated power | 125KVA*12/160KVA*12 |
| Welding speed | 0-60times/min | Dimension | 14*3.2*2.2m |
| Welding spots | 24 | Weight | ≈ 8T |
Falling wire part
Pulling mesh part
Finished Product
