Product Details:
Payment & Shipping Terms:
|
| Welding Wire Diameter: | 2.5--6.0mm | Width Of Mesh: | Max 2500mm |
|---|---|---|---|
| Mesh Opening: | 50x50--200x200mm(adjustable) | Length Of Mesh: | According To Buyer's Requirement |
| Welding Speed: | 40--70 Times Per Min | Welding Transformer: | 160KVA*6PCS |
| High Light: | chicken mesh making machine,automatic wire mesh machine |
||

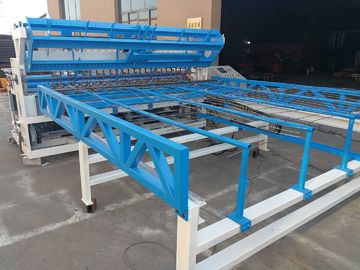

Automatic Multi Spots Mesh Welding Machine For Mesh size 50--200mm
Product description
This multi spots mesh welding machine adopts Japan Mitsubishi brand electronic synchronous control technique,welding time and sub-control welding are all composed of digital integrated circut,which has high control accuracy,stable performance,firm welding spots and without burned mark.The welding speed is fast and the operation is simple and easy to master.
The weft matched with the accurate weft cutting device and accurate positioning device,ensures the weft at the same length and without being out.The mesh drawing system is controlled by servo motor which improved the precision of mesh opening size, meanwhile the line wire and the weft wire spacing are adjustable.

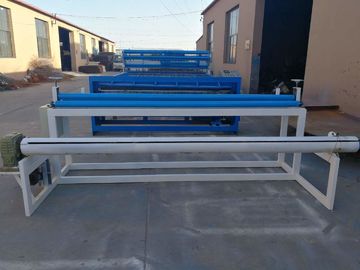

The multi spots mesh welding machine can produce both mesh panel and roll mesh. The multi spots mesh welding machine has a mesh cutting machine to cut the mesh panel according to your requirment. Also. Can roll mesh together. The max length of mesh in roll 60m.
Technical parameter
| Wire diameter | 2.5--6.0mm | Line wire form | Coil wire |
| Line wire distance | 50--200mm(adjustable) | Weft wire form | Pre-cut wire |
| Cross wire distance | 50--200mm(adjustable) | Rated voltage | 380V 50HZ |
| Welding net width | Max 2500mm | Welding transformer | 6X125KVA |
| Welding speed | 40--70 times/min | Panel mesh Length | Max 6m |
| Welding spots | 48 | Dimension | 9.5m*3.2m*1.6m |
| Machine weight | 4.2T | Motor power | 4.0 KW |
