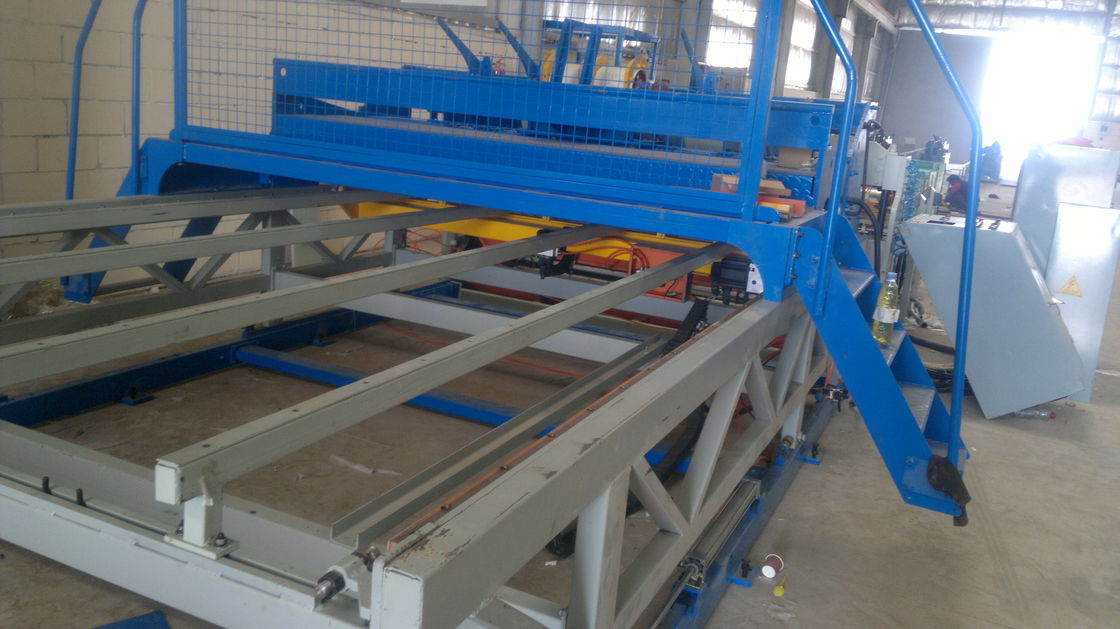

Automatic Reinforcing Mesh Welding Machine , Wire Spot Welding Machine For Construction

Reinforced Concrete Mesh Welding Machine

The details of mesh spot welding machine

1. The machine is used for wire diameter 5-12mm, it is an automatic equipment that desiged and manufactured by ourselves. Both the line wire and cross wire are feed from pre-cut wire, the controlling system adopts PLC control; the machine adopts servo motor to pull the mesh panel repeat.

2. The machine uses PLC touch screen control technique, we use Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, so it can weld different mesh size on the same mesh panel .

3. Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.

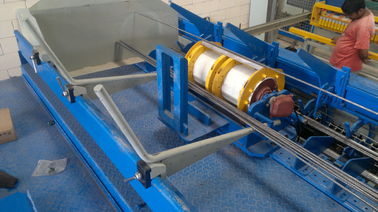

4. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of air pump, the cross wires falling automatically one by one.
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases production efficiency.

5.Welding system: the machine adopts synchronous and PLC control technique. The welding power comes from the spring. At the same time, the welding electrodes are equipped with water cooling system to make sure the welding during a long working time, and prolong the life .

6.The mesh pulling system is controlled by servo motor, which makes the pulling mesh aperture more standard and accurate.

7. The material is suitable for low carbon wire, galvanized wire. ribbed rebar and so on.

Technical parameters:
