Product Details:
Payment & Shipping Terms:
|
| Power Consumption: | 7--10 KVA Per Hour | Welding Speed: | 45--60 Times Per Min |
|---|---|---|---|
| Wire Diameter: | 2.5--6.0mm | Capacity: | 270m Per Hour |
| Motor: | 4KW | Color: | Fully Automatic Welded Wire Mesh Machine |
| Highlight: | wire mesh fencing machine,steel wire mesh machine |
||

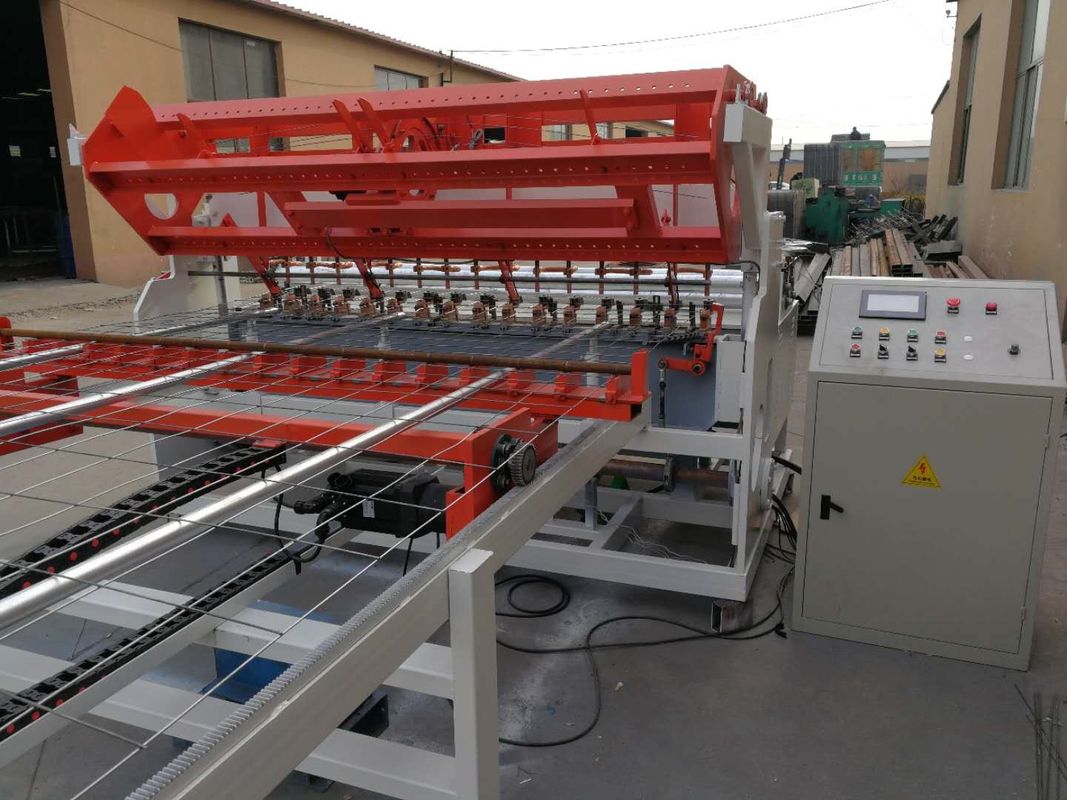

Automatic Roll Mesh Welding Machine Easy Operate For Construction Materials
1. The control panel adopts many famous brand electric components, more intelligent, easy to operate.
2. The slot tunnels is made of cast iron material, can be adjusted for different diameter.
3. Pure red copper (upper) and chromised bronze (lower), durable.
4. The cross wires feeder is controlled by new type step motor and SMC (Japan) air cylinder.
5. Helical gear reducer connect the principal axis directly, stable, suitable for high speed welding.
6. Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.

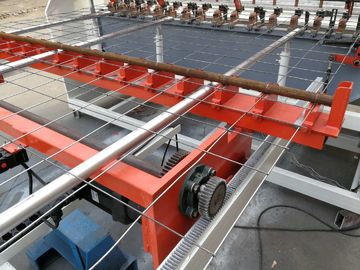

7. Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.
8. The cable drag chain is Igus brand, imported from Germany, not easily hang down.
Technical details:
| Wire diameter | 2.5--6.0mm | Line wire form | From coil |
| Line wire distance | 50--300mm | Weft wire form | Pre-cut wire |
| Cross wire distance | 50--300mm | Rated voltage | 380V 50HZ |
| Mesh width | Max 2500mm | Transformer power | 6X160KVA |
| Welding speed | 45--60 times/min | Length of mesh | 50m |
| Welding spots | 48 | Dimension | 6m*2.3m*1.6m |
| Machine weight | 4.3T | Motor power | 4.0KW |
Applications:
It is used for construction materials of roof, tunnel, bridge construction, subgrade and construction site.
