Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 2.5--5.5mm | Width Of Mesh Panel: | 1500mm |
|---|---|---|---|
| Mesh Opening: | 50x50mm--200x200mm(adjustable) | Capacity: | 270--300m Per Hour |
| Motor: | 4KW | Color: | According To Your Requirement |
| High Light: | chicken mesh making machine,automatic wire mesh machine |
||

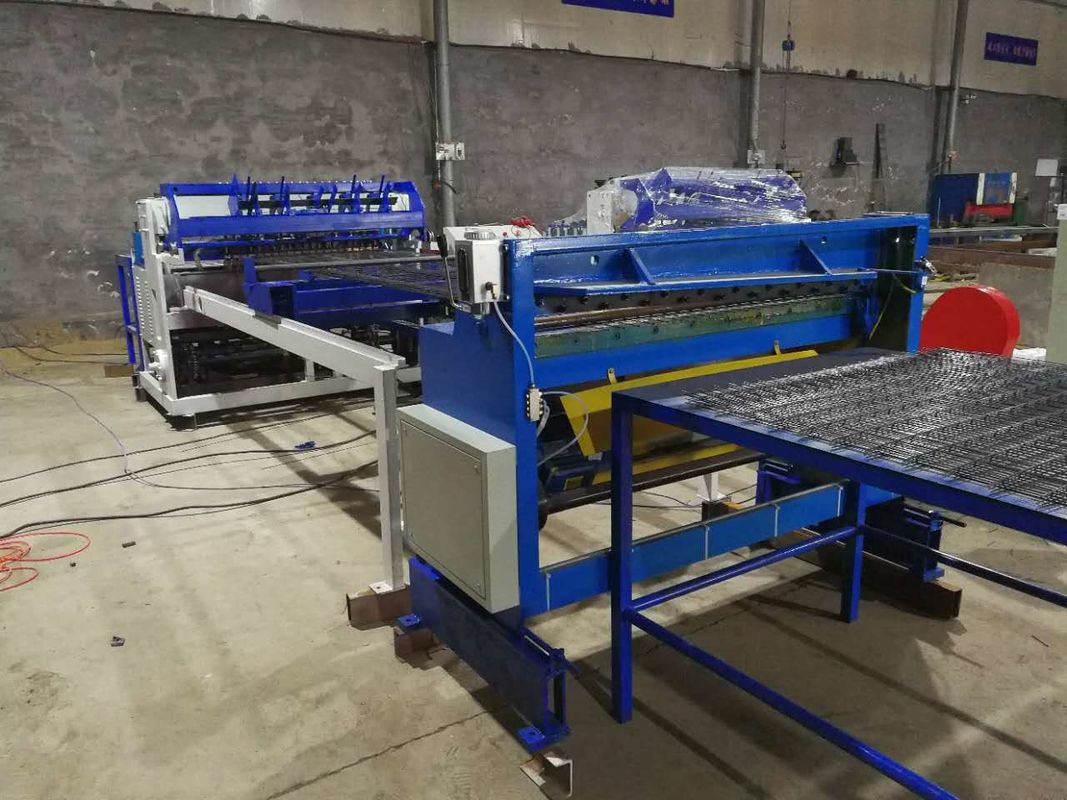

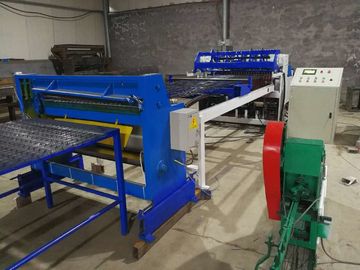

Automatic Steel Grid Welding Machine For Wire Diameter 2.5--5.5mm
Product description;
Performance characteristics of Automatic Steel Grid Welding Machine
1. The automatic steel grid welding machine adopts electronic synchronous control technique. Welding time and sub-control welding are all controlled by digital integrated circuit, which has high control accuracy, stable performance, firm welding spots and without burned mark.
2. The welding speed is fast and the operation is simple and easy to learn.
3. Weft wire blanking device driven by step motor, has automatic control and blanking function. The weft matched with the accurate weft cutting device and accurate positioning device, ensures the weft at the same length and without being cut.
4. Mesh drawing system is controlled by servo motor which improved the precision of mesh opening size, meanwhile the longitudinal and transversal spacing are adjustable.
5., Wire feeding method: The line wires from coil wire.The cross wires should be pre-straightened and pre-cut. The cross wire system is controlled by stepping motor. Sends weft wires one by one automatically.The machine will stop working when the cross wire used up in the hopper.
6, Material:Suitable for low carbon iron wire, black annealed wire or galvanized (cold galvanized, hot galvanized) processing.
Technical parameter:
| Wire diameter | 2.5--5.5mm | Line wire form | From coil |
| Vertical wire distance |
50--200mm (adjustable) |
Weft wire form | Pre-cut wire |
| Horizontal wire distance |
25--200mm (adjustable) |
Rated voltage | 380V 50HZ(customize) |
| Welding panel width | Max 1500mm | Transformer power | 160KVAx3PCS |
| Welding speed | 45--60 times/min | Panel Length | Max 6m |
| Welding electrodes | 24 | Dimension | 5m*1.7m*1.7m |
| Machine weight | 3.9T | Motor power | 4.0KW |
The advantages of automatic steel grid welding machine
1. Numerical control cabinet has two kinds of input panel forms, touch screen and keyboard. The operation is easy and saves human labor.
2. The line wires feeding coiling, so the product can be mesh panels or rolls according to your need. The steel grid welding machine’s straighten wheels can pre-straighten line wires.
3. Mesh pulling device driven by servo motor forth and back circle automaticly improves efficiency.
