Product Details:
Payment & Shipping Terms:
|
| Motor: | 4.0KW | Welding Speed: | 40--60 Times Per Min |
|---|---|---|---|
| Mesh Size: | 50*50--300*300mm(can Be Adjustable) | Wire Diameter: | 2.5--6.0mm |
| Length Of Mesh: | Max 6m | Name: | Iron Net Making Machine |
| High Light: | fence panel making machine,fencing wire making machine |
||

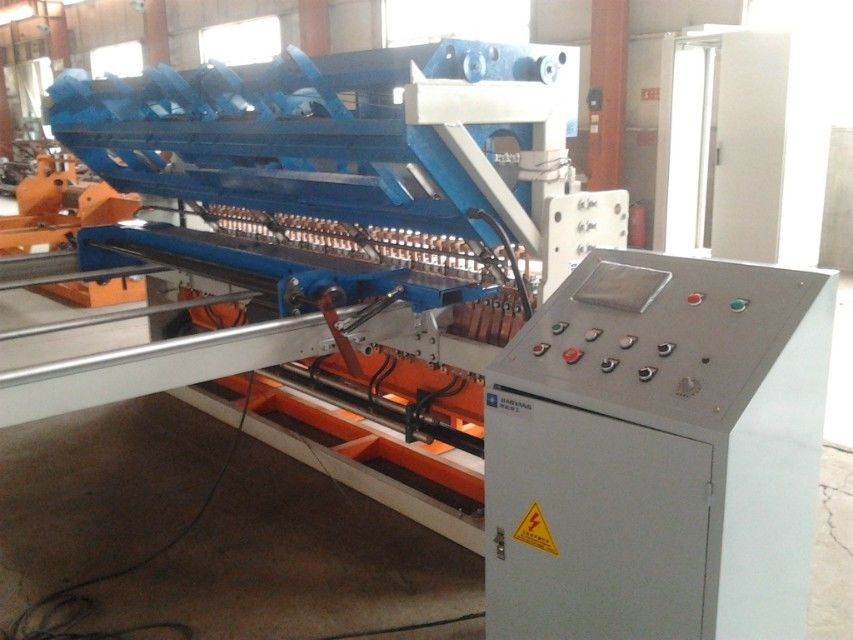

Best price Steel Iron Fence Grid Welding Equipment For Fencing
Feeding material:
The warp wire and weft wire are straightened and cuted from coil wire material ,realized by auto straightening and cutting machine.
The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one ,from the weft wire system
Welding mesh panel system:
The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a Panasonic ( Japan ) PLC digital programming system, and the mesh opening size can be adjusted only by direct input on a touch screen; and it could be exist different weft distance on one piece of one mesh sheet
Drawing mesh panel system:
Panasonic ( Japan ) servo motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.
| Name | Parament | Unit |
| Wire diameter | 3-6 | mm |
| Width of mesh | 2500 | mm |
| Weft Wire Distance | 50-200 | mm |
| Warp Wire Distance | 50-200 | mm |
| welded points | 48 | points |
| Welding frequency | 40-60 | times/min |
| Weight | 4.5 | ton |
| Rated capacity | 6*160 | kva |
| Rated voltage | 220/380/440 | V |
| Need Worker | 2-3 | person |
| Warp Wire | Pre- cut Wire | |
| Weft wire | Pre-cut Wire | |
| Type of production |
mesh panel |
|
Application materials : welding machine is good at welding various metal wire : stainless steel wire , low carbon steel wire , round steel bar, ribbed steel bar
Application mesh panel : welded mesh panel widely used as welded wire mesh fence panel,school playground fence , 3D wire mesh fence, welded garden fence curve welded fence and construction mesh panels
