Product Details:
Payment & Shipping Terms:
|
| Length Of Mesh: | Max 12m | Welding Transformer: | 125KVA*13 |
|---|---|---|---|
| Width Of Mesh: | 2500mm | Welding Electrodes: | 26PCS |
| Mesh Opening: | 100x100mm--300x300mm(adjustable) | Color: | According To Your Requirement |
| High Light: | automatic steel bar cutting machine,rebar straightening cutting machine |
||

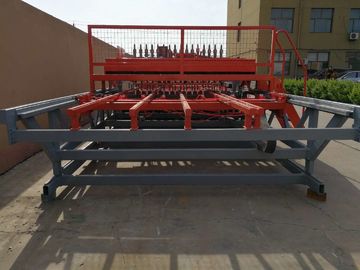

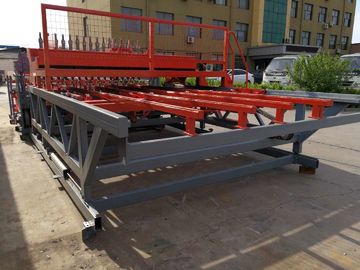

Automatic Vertical Wire Feeding Concrete Reinforcing Steel Mesh Welding Machine , Mesh Width 2500mm
Product description;
1. The product model:Automatic reinforcing mesh product line I
2. The control system:CNC
3. Power system:Electromagnetic brake motor
4. Characteristic:
Both line wires and cross wires are per straighten, cut and fed automatic. Cross wire hopper which can load 1.5ton rebar savelabor and increase productivity. The feeding longitude wires is by feeding car. Compared to ordinary reinforcing mesh welding machine, The longitude wires and cross wires are fed automatic. which maximized save labor and greatly increase production.
Technical Parameters:
| Specifications of Concrete Reinforcing Steel Mesh Welding Machine | |||
| Item | MLG-WHJ-2500 | MLG-WHJ-2900 | MLG-WHJ-3300 |
| Number of Electrodes | 24 | 28 | 32 |
| Max. Mesh Width | 2500mm | 2900mm | 3300mm |
| Wire Diameter | 3-8mm & 5-12mm | 5-12mm | 5-12mm |
| Mesh Length | 2-12m | 2-12m | 2-12m |
| Cross Wire Space | >50mm | >50mm | >50mm |
| Line Wire Space | 50-200mm | 100-300mm | 100-300mm |
| Electric Capacity | >315KVA | >315KVA | >315KVA |
| Welding Speed | 40--60times/min | 40--60 times/min | 40--60 times/min |
| Control System | PLC Control | PLC Control | PLC Control |
|
Special specification is available according to your requirements. |
|||
Applications;
(1) Insurance the quality of project: uniformity spacing, high welding strength,hard to deform by trample.
(2) Enhance the ability of anti-cracking of concrete
(3) Low cost
(4) High tensile strength, good yield strength and good elongation for long life.
Application of our high quality concrete reinforcement wire mesh (factory):
(1) Widely used in construction reinforcement
(2) Reinforcing mesh for tunnels, bridge, wharf, airport, highway
(3) Construction of wall body
