Product Details:
Payment & Shipping Terms:
|
| Model: | CS-A | Main Wire Diameter: | 1.6--2.2mm |
|---|---|---|---|
| Barb Wire Diameter: | 1.6--2.6mm | Barb Wire Spacing: | 3inches 4inches 5inches |
| Motor: | 2.2KW | Name: | Automatic Barbed Wire Making Machine |
| Highlight: | barbed wire making machine,barbed wire manufacturing machine |
||

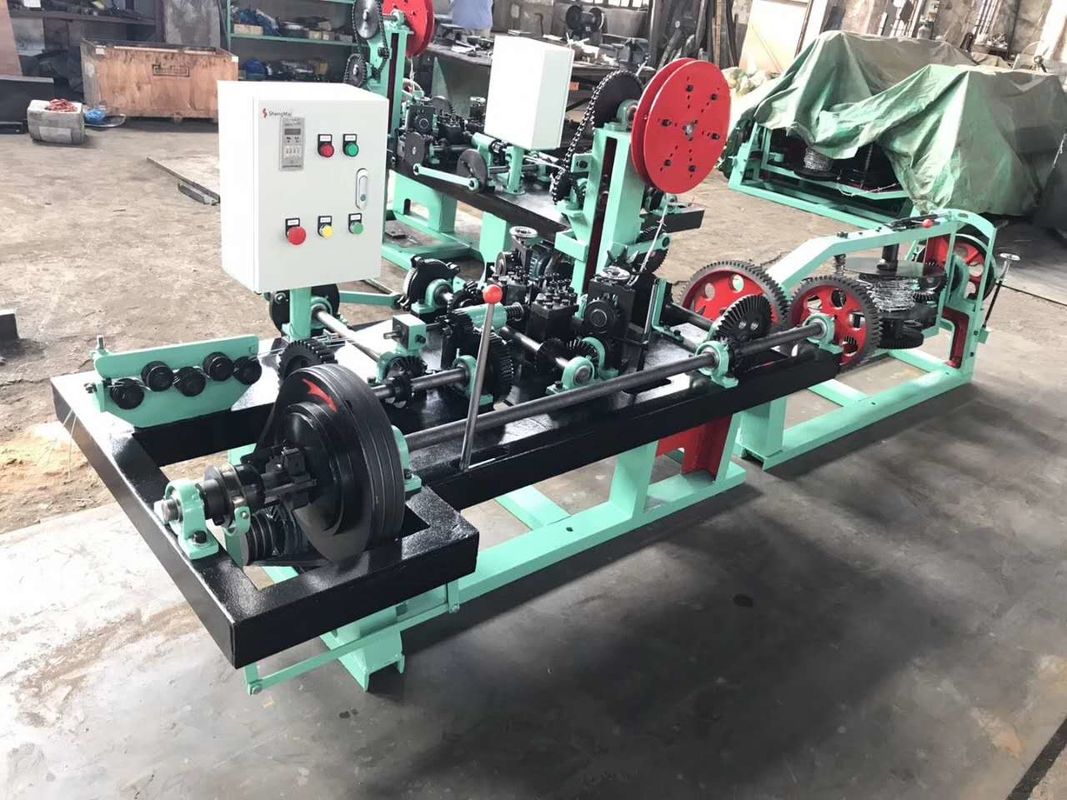

Single Twisted Barbed Wire Making Machine For PVC Coated Wire
This machine can produce barbed wire which is widely used in national defense, military, railway, highway, agricultural, animal husbandry and other industries. The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.
Raw material
It consists of hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.
Technical parameter
| Model | CS-A Type |
| Motor power | 2.2kw |
| Main drive shaft speed | 402r/min |
| Wire diameter | 1.6-2.2mm |
| Barbed wire diameter | 1.6mm-2.6mm |
| Barbed space | 76mm(3’)/102mm(4’)/127mmm(5’) |
| Twisted number | 3-5 |
| Theoretical production | 50--60kg/h |
| Total weight | 1200kg |
| Main part size | 1900mm*1300mm*980mm |
| Take-twisting part size | 1300mm*800mm*700mm |
Applications:
It is widely used in national defense, railway, highway, agriculture, animal husbandry and other industries.
Finished product
