Motor: | 11KW | Capacity: | 150m Per Hour |
---|---|---|---|
Width Of Mesh: | Max 2400mm | Side Wire Diameter: | 2.0--3.5mm |
Twine Wire Diameter: | 1.9--2.5mm | Color: | According To Your Requirement |
High Light: | cattle fence machine,fence making machine |

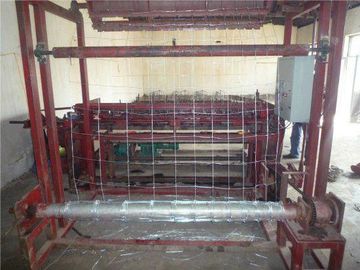

Automatic Fixed Knot Cattle Fence Plant
Description of the machine
Grassland fence machine can produce width 1422mm wrap- around automatic grassland fence machine which is used to to weave wrap around fence automatically. The grassland fence machine is also called field fence machine,cattle fence machine or garden fence machine.
Function of the machine
This machine can produce grassland fence which is used for preserving the environmental balance,preventing landslide and used as livestock fence .
Feature of the machine
This machine adopts sophisticated computer control, tech advanced manufacturing unique.It has the features of novelty,high degree of automation,operational safety and reliability, easy operation,long life and low price.all the parts which it's working coordinately and smoothly. the finished product is neat and beautiful.It can be produced diverse specification of grassland fence.
Technical Parameter
Type | CY-A | CY-B | CY-C | CY-D |
Width | 1422mm | 1880mm | 2000mm | 2400mm |
Motor | 5.5kw | 7.5kw | 7.5kw | 11kw |
Dimension | 2.8*3.2*2.4(m) | 3.3*3.2*2.4(m) | 3.4*3.2*2.4(m) | 3.9*3.4*2.4(m) |
Efficiency | ≤45rows/min | ≤45row/smin | ≤45rows/min | ≤45rows/min |
Twine diameter | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) |
Side wire diameter | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) |
Voltage | 3-phase380v50HZ | 3-phase380v50HZ | 3-Phase380v50HZ | 3-Phase380v50HZ |
Weight | 3.0T | 3.5T | 4.0T | 4.5T |
Maximum line wire number | 11 | 13 | 18 | 23 |
Minimum line wire opening | 75mm | 75mm | 75mm | 75mm |
The weft opening |
100mm,200mm,300mm 0r 150mm,300mm
|
100mm,200mm,300mm 0r 150mm,300mm |
100mm,200mm,300mm 0r 150mm,300mm
|
100mm,200mm,300mm 0r 150mm,300mm
|
Applications:
Novel structure, strong precision, smooth surface, uniform mesh, integrity, strong toughness, not together, prevent slippery, compressive characteristics such as widely used in: the zoo fence, construction site fences, captive poultry, slope greening, landscaping, with a net, wildlife park, grassland, pasture and other places of grazing in captivity, especially the application in the pasture fence project, for rotational grazing pastures, protection, can play an important role, can also be used for rare flowers, growing forest park isolation protection.
