Name: | Automatic Wire Mesh Welding Machine | Welding Speed: | 40--60 Times Per Min |
---|---|---|---|
Mesh Size: | 50*50--300*300mm | Width Of Mesh: | 100--2500mm |
Motor: | 4KW | Weight: | 4700KG |
High Light: | wire mesh making machine,chicken mesh making machine |

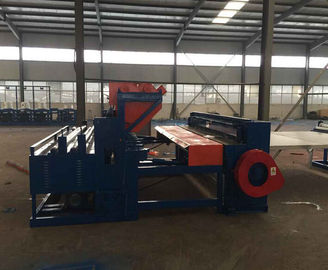

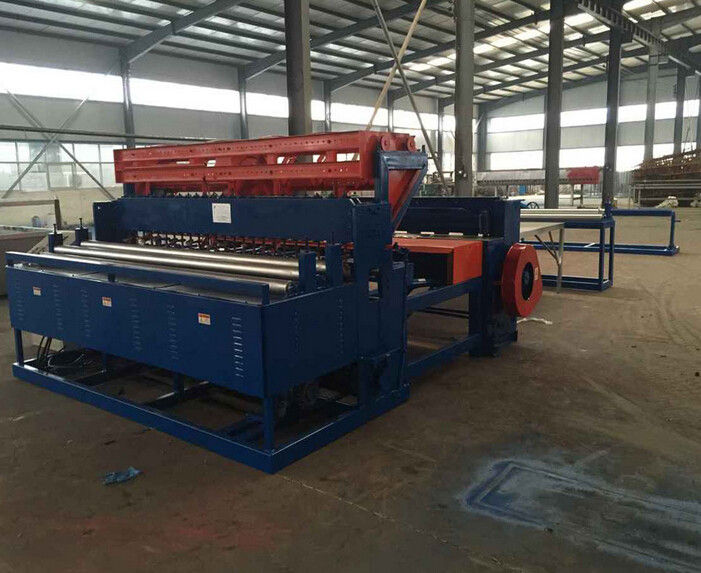

Full Automatic Welded Grid Panel Machine / Wire Mesh Welding Machine
Product description;
1, This is our latest develop full automatic welded grid panel machine.
2, Adopt step motor to control the transversal wire downslide structure, take the transversal wire from bunker automatically, and put the transversal wire on the welding position exactly. The mesh side is regular, no need to cut.
3, The drawing mesh system adopt elastic tie bar and fixing cell opening equipment, (the design has acquired patent No. 200520024380.9) By adopting this system, adjust cell opening easily, high precision cell opening .And can be adjusted in the scope at random. No need to cut mesh sides.
4, The longitudinal wire : from coil wire
5, The transversal wire: pre-straightening and cutting wire
The main parameter :
Wire diameter: 3-6mm
Welding aperture: 50-200mm
Width of mesh: 1000-2500mm
Number of warp: 48
Welding speed: 45times/min
Overall diameter: 6*3.2*1.8mm
Applications:
Construction mesh , building roof mesh, floor warming mesh, seed-bed mesh, flower room mesh
we also accept special wire mesh welding machine requirement.
