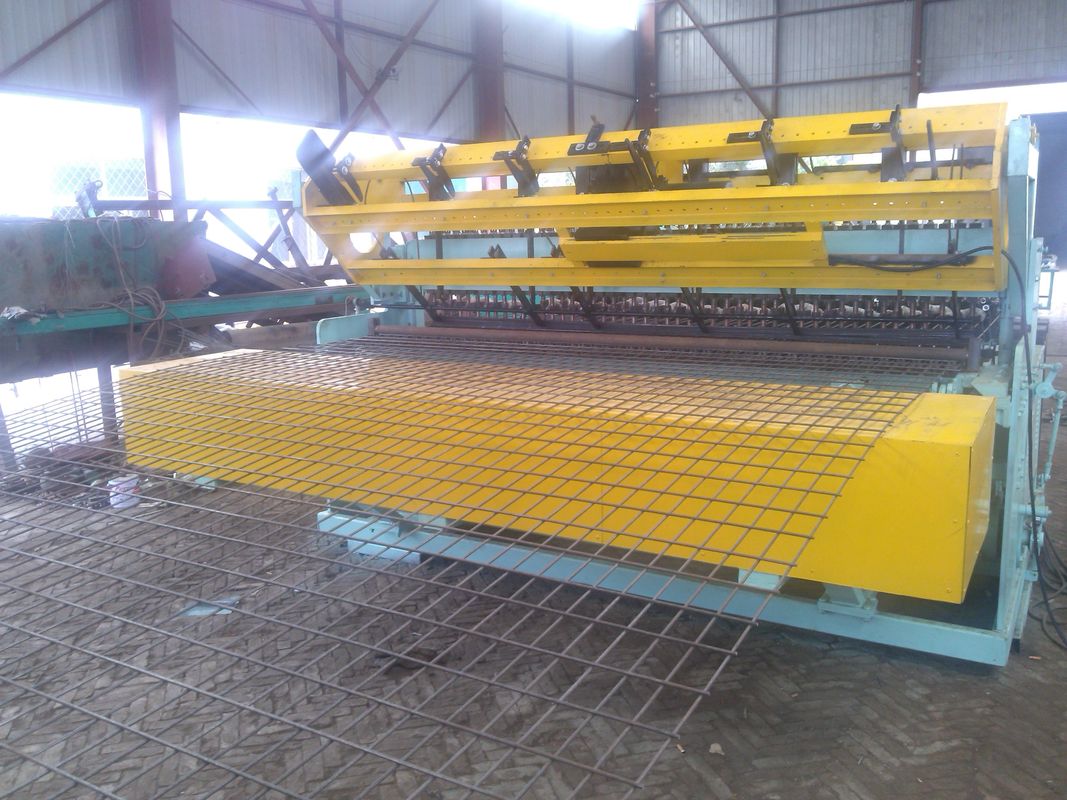

Construction Reinforced Mesh Welding Machine , Automatic Wire Net Making Machine

Construction Reinforced Mesh Welding Machine , Automatic Wire Net Making Machine

Construction Reinforced Mesh Welding Machine , Automatic Wire Net Making Machine
Construction Reinforced Mesh Welding Machine , Automatic Wire Net Making Machine

Large Image :  Construction Reinforced Mesh Welding Machine , Automatic Wire Net Making Machine Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: MLG
Certification: CE
Model Number: WHJ-2400

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Main machine is sketch film paper,spare parts and cabinet will be loaded in wooden boxes.
Delivery Time: 30 days
Supply Ability: 4 sets per month
Detailed Product Description
Warp Spacing: 50--200mm Weft Spacing: 50--200mm
Wire Diameter: 2.5--6.0mm Width Of Mesh: Max 2400mm
Welding Speed: 45--60 Times Per Min Name: Automatic Wire Mesh Welding Machine
High Light:

wire mesh making machine

,

chicken mesh making machine

High Quality Construction Reinforcing Steel Mesh Welding Machine





Weft feeding method



The machine equipped with automatic straightening cutting device. This device straighten and cut weft wire into fixed length. Then worker put those weft wires into hopper, the weft wires will fall automatically.



Warp feeding method

Coil wires are put on the wire tray. Firstly, let coil wires through straightening device,this device will make the coil wire become straight. Then let coil wire through into warp hole, finally the entire welding process is automatic.



Welding system

The machine adopts synchronous and PLC control technique. The welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper. Welding time and sub-control welding adopt Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel. What’s more, the below electrodes installed water-cooling equipment, which reduce the loss and ensure welding quality.



Pulling mesh system

The mesh pulling system is controlled by servo motor, which makes the pulling mesh aperture more standard and accurate. This automatic pulling device can be separated from the welded machine.



Construction Reinforcing Steel Mesh Welding Machine

This machine can weld continuous wire mesh sheets. After the wire mesh sheets enter into the automatic cutting machine, the cutting machine can cut thewire mesh sheet into fixed-size according to you need.



Main parameters



Item

WHJ1200

(2.0-5.0mm)

WHJ1600

(3.0-6.0mm)

WHJ2100

(3.0-6.0mm)

WHJ2500

(3.0-6.0mm)

Number of Electrodes 24 32 40 48
Max Mesh Width 1200mm 1600mm 2100mm 2500mm
Wire Diameter 2.0-5.0mm 3.0-6.0mm 3.0-6.0mm 3.0-6.0mm
Cross Wire Space 50-200mm 50-200mm 50-200mm 50-200mm
Line Wire Space 50-200mm 50-200mm 50-200mm 50-200mm
Cross Wire Feeding Pre-cut Pre-cut Pre-cut Pre-cut
Line Wire Feeding Coil Coil Coil Coil
Rated Power 100KWA*4 100KWA*5 100KWA*6 100KWA*8
Welding Speed 40-60times/min 40-60times/min 40-60times/min 40-60times/min
Control System PLC or SCM PLC or SCM PLC or SCM PLC or SCM
Including Auxiliary





wire straightening and cutting machine,,cutting mesh machine,rolling mesh machine,line wire straightening device,pay-offs























































Construction Reinforced Mesh Welding Machine , Automatic Wire Net Making Machine 0

Construction Reinforced Mesh Welding Machine , Automatic Wire Net Making Machine 1
