Product Details:
Payment & Shipping Terms:
|
Mesh Size: | 25*25--100*100mm | Capacity: | 80--120 Square Meters Per Hour |
---|---|---|---|
Material: | Galvanized Wire, PVC Coated Wire.Low Carbon Wire | Weight: | 3.7T |
Dimension: | 5300mmx2000mmx1200mm | Name: | Chain Link Fence Making Machine |
Highlight: | chain link fence making machine,chain link fence weaving machine |

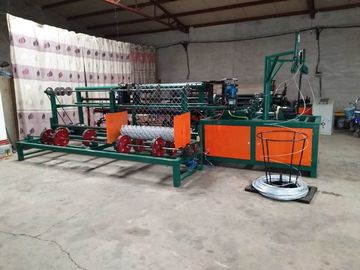

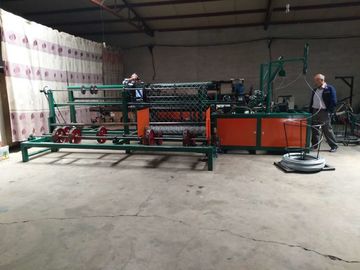

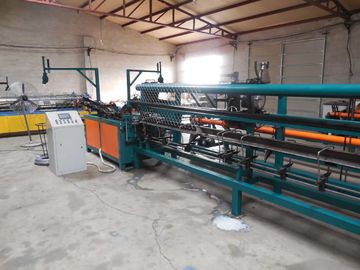

Double Wire Feeding CNC Chain Link Fence Machine For Playground
Double wire Automatic Chain Link Machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
The automatic chain link machine is automatically wound to form rolls when the desired length is manufactured. One side or both sides of the end of net hole is twisted or with burr in edge.
Use compacting machine to make it into rolls.
Suitable wire to the machine:
High-quality low carbon steel wire, Galvanized steel wire,Stainless steel wire, Aluminum alloy wire, Aluminum-clad steel wire.
Characteristics of chain link fence machine:
Easy to control with high efficiency
Safe reliable, energy conservation
Fencing width can be adjusted according to special requirements
Technical parameters
Wire diameter | 1.8--4.0mm |
Width of mesh | Max 4000mm |
Mesh size | 25*25--100*100mm |
Capacity | 80--120 square meters per hour |
Motor power | 11KW |
Weight | 3.7T |
Dimension | 5300*2000*1200nn |
Control system | Mitsubishi PLC |
