| Weaving Wire Diameter: | 1.6--4mm | Weaving Width: | Max 4500mm |
|---|---|---|---|
| Mesh Size: | 60*80mm,80*100mm,100*120mm 120*150mm | Motor Power: | 22KW |
| Application: | Sea Wall, Hillside, Road, Bridge And Civil Engineering | Color: | Green |
| High Light: | gabion making machine,gabion box machine |
||

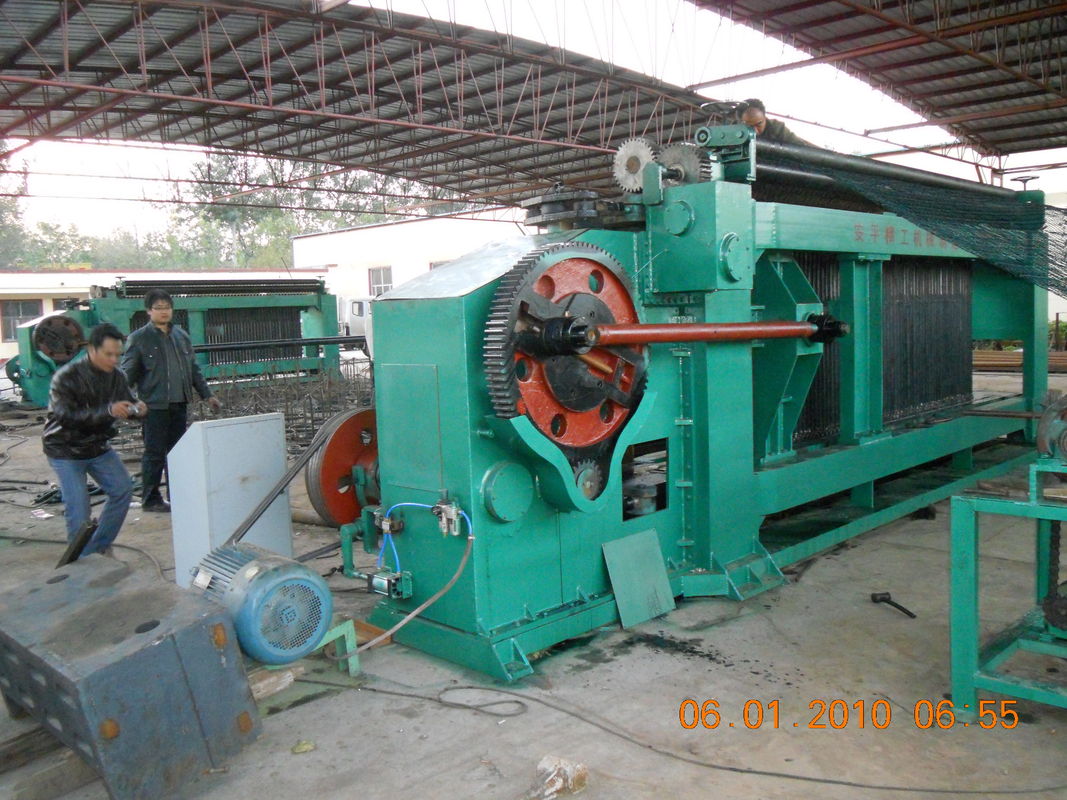

Max 4500mm Width Heavy Duty Gabion Mesh Machine For Slope Protection
Descrition:
1. Invented first double twist gabion machine in China
2. Apply for national patents, number is ZL99229381.2 and ZL00267066.5
3. SGS,TUV certificate
Gabion machine
MLG series machine is designed to make hexagonal wire mesh of various widths and mesh sizes.
We have 15 years export experience establishing trade with more than 30 countries, and Maccaferri,
DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.
Gabion Application
Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside, road, bridge and civil engineering. It is one of the best against flooding material.
Detail Specifications:
| Style | Mesh size | Width | Wire diamater | Spindle Speed | Twist | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
| LNWL43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
| LNWL43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL43-60-3ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 5 | 22 | 165 |
| LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 | |||
| LNWL43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 | |||
| LNWL43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
1.Wire Pay Off System &Wire Tension Roller Working
Collecing roll machine
Finished product
Application
