Product Details:
Payment & Shipping Terms:
|
| Motor: | 15KW | Wire Diameter: | 5--12mm |
|---|---|---|---|
| Mesh Width: | Max 3000mm | Mesh Size: | 100*100--300*300mm(adjustable) |
| Name: | Reinforcing Mesh Welding Machine | Welding Times: | 40--60 Times Per Min |
| High Light: | rebar mesh welding machine,rebar straightening cutting machine |
||

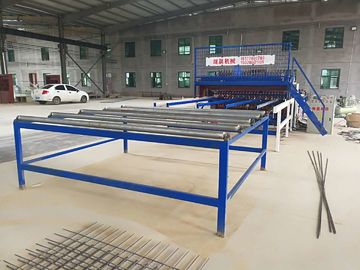

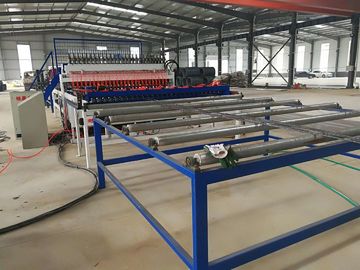

Steel Bar / Reinforcing Concrete Welded Wire Mesh Machine
Product description:
1. The machine is used for wire diameter 5-12mm, it is an automatic equipment that desiged and manufactured by ourselves. Both the line wire and cross wire are feed from pre-cut wire, the controlling system adopts PLC control; the machine adopts servo motor to pull the mesh panel repeat.
2. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of air pump, the cross wires falling automatically one by one.
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases production efficiency.
3. The machine adopts synchronous and PLC control technique. The welding power comes from the spring. At the same time, the welding electrodes are equipped with water cooling system to make sure the welding during a long working time, and prolong the life .
Technical parameter:
| Items | DC-12MA-50-1200 | DC-12MA50-1600 | DC-12MA50-2500 |
| wire diameter | 5-12mm | 5-12mm | 5-12mm |
| line wire space | 100-300mm | 100-300mm | 100-300mm |
| cross wire space | 50-300mm | 50-300mm | 50-300mm |
| wire forms | pre-cut wires | pre-cut wires | pre-cut wires |
| mesh width | 1200mm | 1600mm | 2500mm |
| number of electrodes | 12 (customzied) | 16(customized) | 25(customized) |
| welding speed | 40-60times/min | 40-60times/min | 40-60times/min |
| Cooling system | Water cooling transformer | Water cooling transformer | Water cooling transformer |
| Controlling system | PLC touch screen | PLC touch screen | PLC touch screen |
1. If the buyers need, we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination port.
2. Maintenance period :one year for whole machine except vulnerable parts
3. The numbers of technical persons: one technician per machine
4. The fees: the buyer have to pay the technical salary 80 USD per day, and the round-trip ticket, accommodation and other related fees.
During the maintenance period , if the parts are broken caused by the product problem, seller will offer the parts for free, if you need we assign the technicians to your factory, then you will pay some related fees.
