Product Details:
Payment & Shipping Terms:
|
| Width Of Mesh: | Max 4300mm | Mesh Size: | 60*80mm,80*100mm,100*120mm |
|---|---|---|---|
| Wire Diameter: | 1.6--3.2mm | Motor: | 11KW 15KW |
| Dimension: | 7200*1400*2300mm | Color: | According To Your Request |
| Name: | Gabion Wire Mesh Machine | ||
| High Light: | gabion making machine,gabion box machine |
||

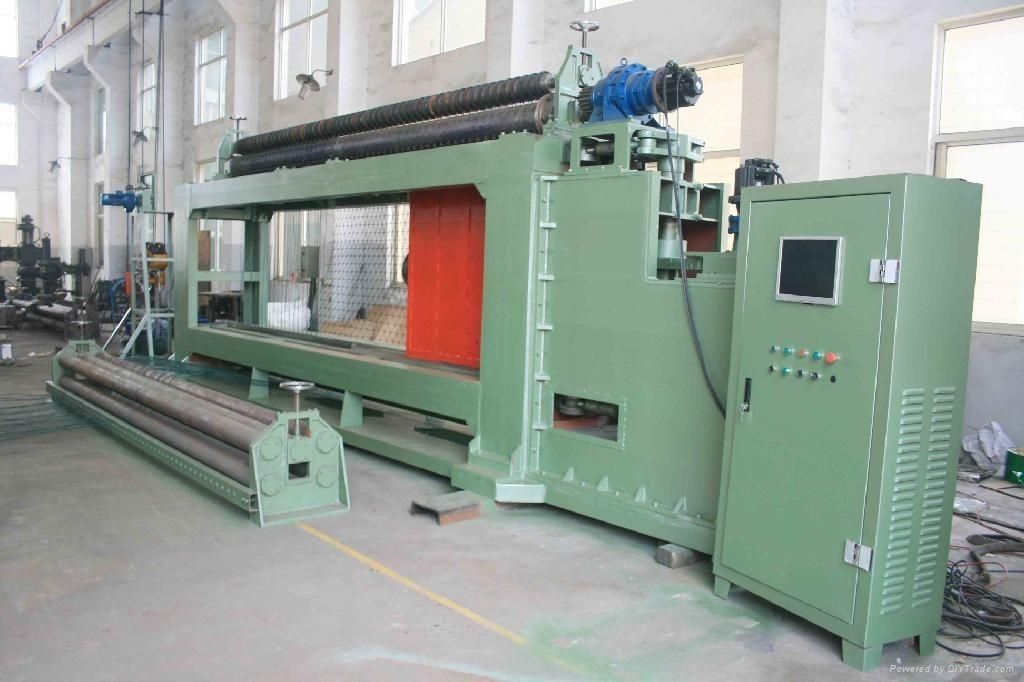

Automatic Gabion mesh Knitting Machine With Latest technology
Gabion mesh machine is also called Heavy duty hexagonal wire mesh machine,Which is
widely used to make gabion mesh , the mesh is widely used to make stone wire mesh cages
which is widely used to protect and support the seawall, hillsides, road , bridge and so on.
Advantages:
1. New type double rack drive gabion knitting machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.

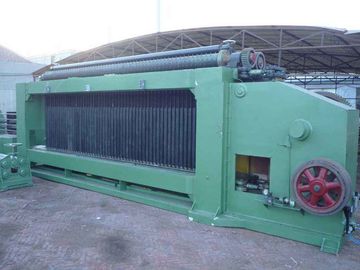

Gabion mesh knitting machine
Gabion mesh making machine is designed to make hexagonal wire mesh of various widths and mesh sizes.We have 15 years export experience establishing trade with more than 30 countries, and Maccaferri,
DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.
Technical parameter;
| Model | Mesh hole(mm) | Max width(mm) | Wire diameter(mm) | Twisting number | motor | Capacity(m/h) |
| LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 11 | 165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | |||
| LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 | |||
| LNWL23-120-2 | 120*150 | 1.6-3.2 | 255 | |||
| LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 15 | 165 | |
| LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 | |||
| LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 | |||
| LNWL33-120-2 | 120*150 | 1.6-3.5 | 255 | |||
| LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 22 | 165 | |
| LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 | |||
| LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 | |||
| LNWL43-120-2 | 120*150 | 1.6-3.2 | 255 | |||
| LNWL43-60-3 | 60*80 | 4300 | 1.6-2.8 | 5 | 22 | 165 |
| LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 | |||
| LNWL43-100-3 | 100*120 | 1.6-3.0 | 225 | |||
| LNWL43-120-3 | 120*150 | 1.6-3.2 | 255 |
Applications:
Stone cage net purposes and functions:
(1) the control and guide the rivers and
(2) the flood discharge dam and diversion dam
(3) the rockfall protection
(4) prevent water and soil erosion bridge protection
(5) solid soil structure
(6) the coastal defense engineering
(7) harbor engineering retaining wall
(9) road protection Stone cage net support, foundation pit supporting, this structure can be used in slope mountain rockface net-suspended spray, slope vegetative guarding block (green), railway highway isolation, it can also make luggage, gauze pad, used in rivers and DAMS and seawall scour protection and prevention of the reservoir, river closure with a box.
