Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Plate | Wire Diameter: | 3--6mm |
|---|---|---|---|
| Width Of Mesh: | 500--2500mm | Mesh Opening: | 50x50mm--200x200mm(adjustable) |
| Motor: | 4KW | Welding Speed: | 40--60 Times Per Min |
| High Light: | wire mesh making machine,chicken mesh making machine |
||

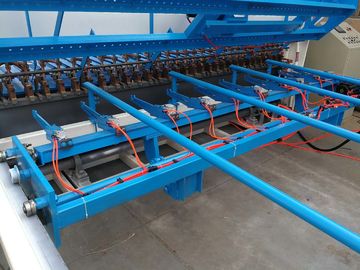

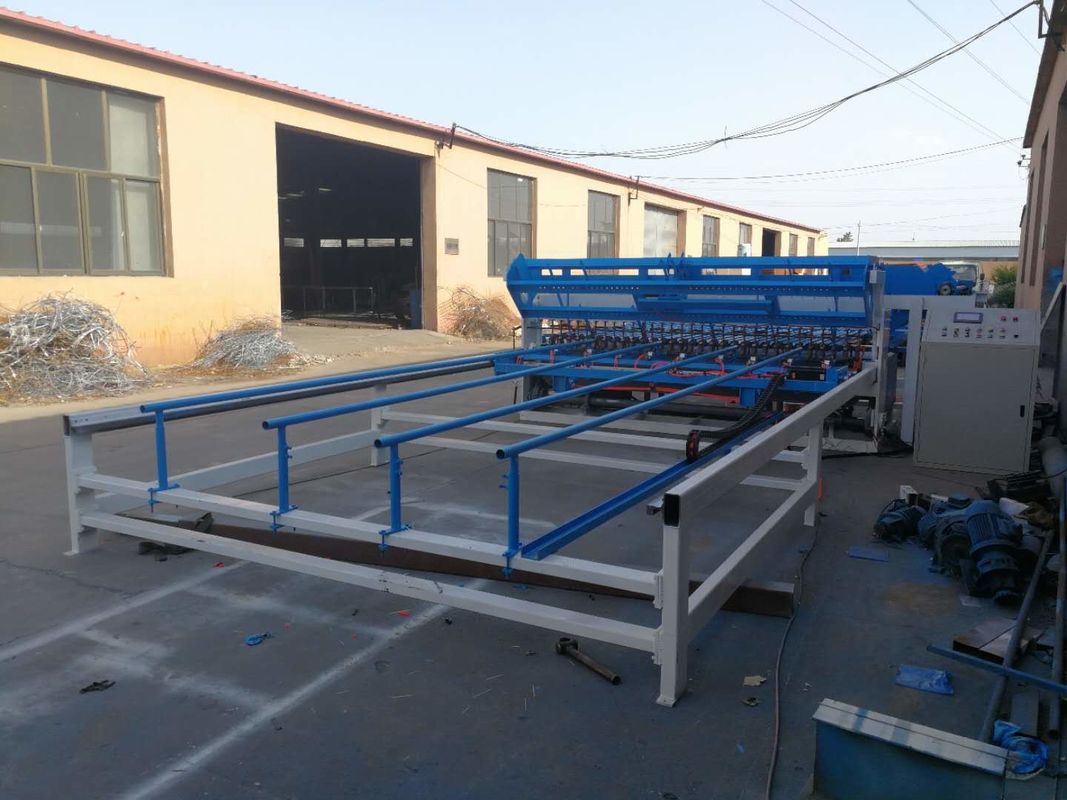

Feeding of Longitudinal Wire Mesh Fence Panel Welding Machine Width 2.5m
Product description
1 This is our latest technology wire mesh fence panel welding machine.
2 The feeding of longitudinal wire is pre-cut. then put the wire into the hopper. The hopper will fall wire automatically. Then put the cross wire into the hopper. the wire is falling automatically. The machine easy operation. Only need 2 persons is ok.
3 The uniform wire will make the longitudianl wire in a line after finish the fall wire. The wire mesh fence panel welding machine will start to work. One welding the mesh pulling system will pull the mesh panel.
4 The machine need power transformer at least 80KVA to supply the machine running.
5 The weding speed is very fast. 40--65 times per min. The capacity is about 220--260m per hour.
6 The wire mesh fence panel welding machine has 160KVA welding water-cooling transformer.
7 Suitable material; wire mesh fence panel welding mahcine is suitable for galvanized wire, low carbon steel wire. ribbed wire etc.
Technical patameter
| Wire diameter | 3.0--6.0mm | Line wire form | Pre-cut wire |
| Vertical wire distance |
50--200mm (adjustable) |
Weft wire form | Pre-cut wire |
| Horizontal wire distance |
25--200mm (adjustable) |
Rated voltage | 380V 50HZ(customize) |
| Welding panel width | Max 2500mm | Transformer power | 160KVAx6PCS |
| Welding speed | 45--65 times/min | Panel Length | Max 6m |
| Welding electrodes | 48 | Dimension | 5m*1.7m*1.7m |
| Machine weight | 3.9T | Motor power | 4.0KW |
Application:
Garden fence, railway fence, bridge fence, highway fence, sports fence, airport fence, etc.
