Product Details:
Payment & Shipping Terms:
|
| Product Name: | Coil Wire Mesh Machine | Wire Diameter: | 1--2.5mm |
|---|---|---|---|
| Width Of Mesh: | Max 2000mm | Mesh Size: | 12.5*12.5mm--100*100mm |
| Weight: | 3.6T | Dimension: | 3.6m*1.7m*1.6m |
| High Light: | wire cage welding machine,wire mesh spot welding machine |
||

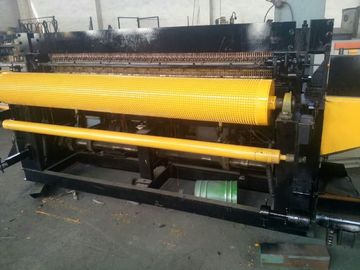

Full Automatic Coil Wire Mesh Machine Manufacturer For Coil Mesh
Function features:
1. It has advantages such as reasonable design, easy operation, low noise, high stability,
low cost, high productivity, firm welding points,welding uniformity and good surface.
2. The hole size is adjustable and precise and the mesh width and length can be adjustable
according to customer’s requirements.
3. This equipment is mechanical-electrical integrative welding machine.
4. The machine can straighten and send cross wire automatically, weld mesh automatically,
cut edge automatically, roll mesh automatically.
5. the machine need 75KVA transformer.need 5 transformers.
6. the diameter of welding rod is 10mm
7. Material:Suitable for carbon steel wire, or galvanized (cold galvanized, hot galvanized) processing.
Main parameter
| Wire diameter | 0.9--2.5mm | Line wire form | From coil wire |
| Line wire distance | 12.5mm--60mm (adjustable) | Weft wire form | From coil wire |
| Weft wire distance |
12.5mm--60mm (adjustable) |
Rated voltage | 380V 50HZ 3 Phase |
| Welding mesh width | 1.5m to 2.0m | Welding transformer | 7X75KVA |
| Welding speed | 80--120 times/min | Mesh length | 50--120m |
| Welding spots | 161 | Dimension | 3.6m(L)*1.6m(W)*1.7m(H) |
| Machine weight | 3.5T | Motor | 4.0KW 1.5KW |
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
6. Main machine packed by stretch film, PLC cabinet packed by air bubble film, spare parts loaded in to box.
♦Anping Molonggang Spot Welding Equipment Co., Ltd. is a professional manufacturer and exporter integrating the design, development and production of wire meshmachines for Breed aquatics mesh welding machine, CNC fence mesh welding machine, Reinforcing mesh welding machine, brick force mesh machine, welded wire mesh machine,building mesh machine,mine supporting mesh welding machine and automatic chain link fence machine, hexagonal wire mesh machine, expanded metal machine, roll forming machine, Automatic Concrete Reinforced Mesh Welding Machine/Welded Steel Bar Mesh Machine and so on.
In order to quote the right price, please provide the following information for the Mesh welding Machine:
1. Wire diameter : From mm to mm.
2. Line wire space : From mm to mm.
Cross wire space : From mm to mm.
3. Mesh width: 1200mm,1500mm, 2000mm, 2500mm, 3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
6. Is the auxiliary equipment following also require ?
