Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 1.6--4.0mm | Width Of Mesh: | 600--4000mm |
|---|---|---|---|
| Mesh Opening: | 30--100mm | Material Application: | Galvanized Wire. PVC Coated Wire. Low Carbon Steel Wire. |
| Total Power: | 9KW | Weight: | 4800KG |
| Highlight: | chain link fence weaving machine,diamond mesh fencing machine |
||

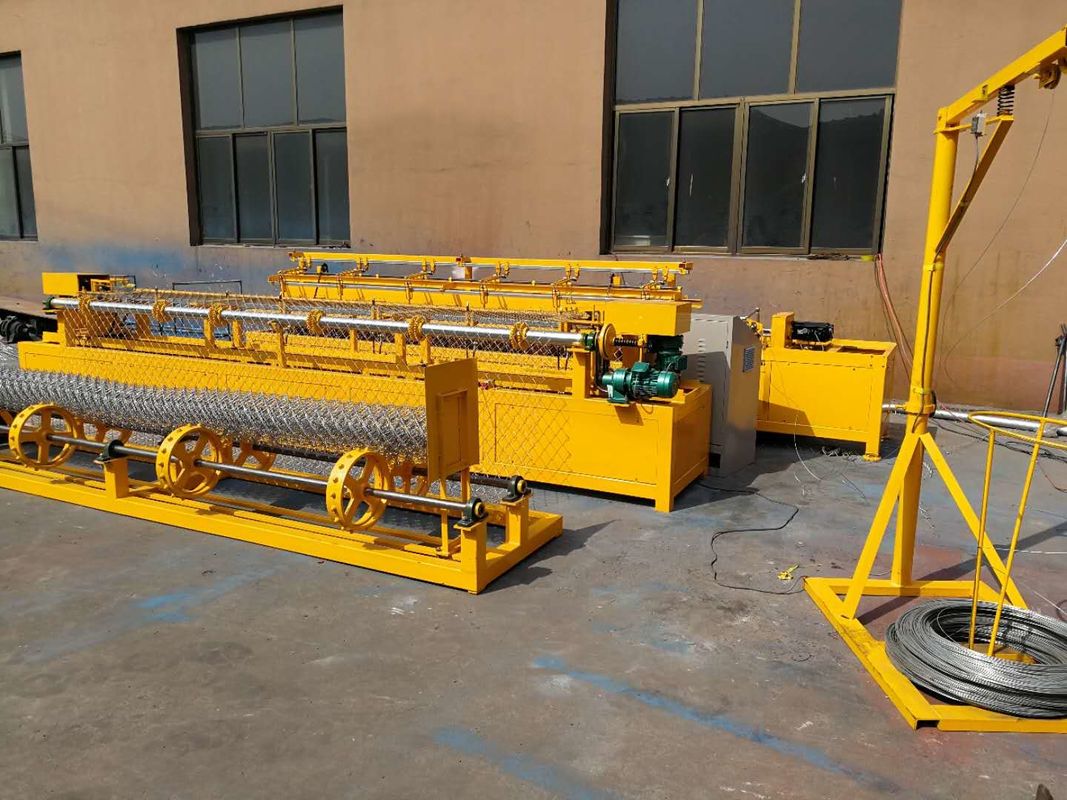

Fully Auto Diamond Size Mesh Making Machine For Galvanized Wire
Description:
1. The fully auto diamond size mesh making machine is our latest machine.
2. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE take place.different gap sized;
3. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process.
4. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place;
5. The material is high-quality low-carbon steel wire,galvanized steel wire ,stainless steel wire,aluminum alloy wire ,PVC coated wire;
Technical parameter
| Max. weaving width | 600mm--4000mm |
| Max weaving length | as customers request |
| Mesh opening | 30-100mm |
| Wire diameter | 1.6-4mm |
| Raw material | Galvanized wire, PVC Coated wire, etc. |

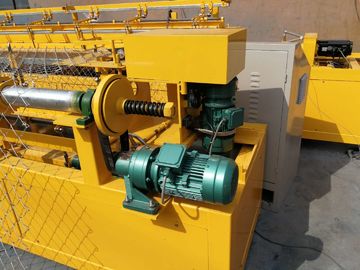

| Servo Motor | 5.5 KW |
| Motor for side dealing | 1.5 KW |
| Motor for parting tool | 1.5 KW |
| Motor for winding | 0.75 KW |
| Output | 120 to 180 square meters/hour. |
| Electric system |
1.Japan Mitsubishi PLC origin 2. Delta Servo motor 3. French Schneider (Low-voltage electrical system) 4. French Schneider or Chinese famous brand Electronics |
| Control system | PLC automatic controller |
| Weight | 3900kg |
| Dimension | Main machine: 6700*1430*1800mm 5100*1700*1250mm |
| Shipping | If 4M width machine, one 40’ GP container is ok. |
Advantage:
1. The chain link is automatically wound to form rolls when the desired length is manufactured;
2. The full auto diamond size mesh making machine is controlled by PLC automatic controller,so only one worker is needed to operate it;
3. Electric system:
--Japan mitsubishi PLC origin
--Servo motor, with fan cooling system,
--Low-voltage electrical from Germany Schneider
--Electric&Machinery from Taiwan Teco Electric
--Clutch from Taiwan Ya Co.,ltd
4. The full auto diamond size mesh making machine is automatically wound to form rolls when the desired length is manufactured.
