Product Details:
Payment & Shipping Terms:
|
Servo Motor: | 5.5KW | Feeding Of Wire: | Double Wire |
---|---|---|---|
Capacity: | 80--140 Square Meters Per Hour | Rolling Mesh System: | PLC Control |
Wire Diameter: | 1.8--4.5mm | Length Of Mesh: | Max 100m |
Highlight: | chain link fence weaving machine,diamond mesh fencing machine |

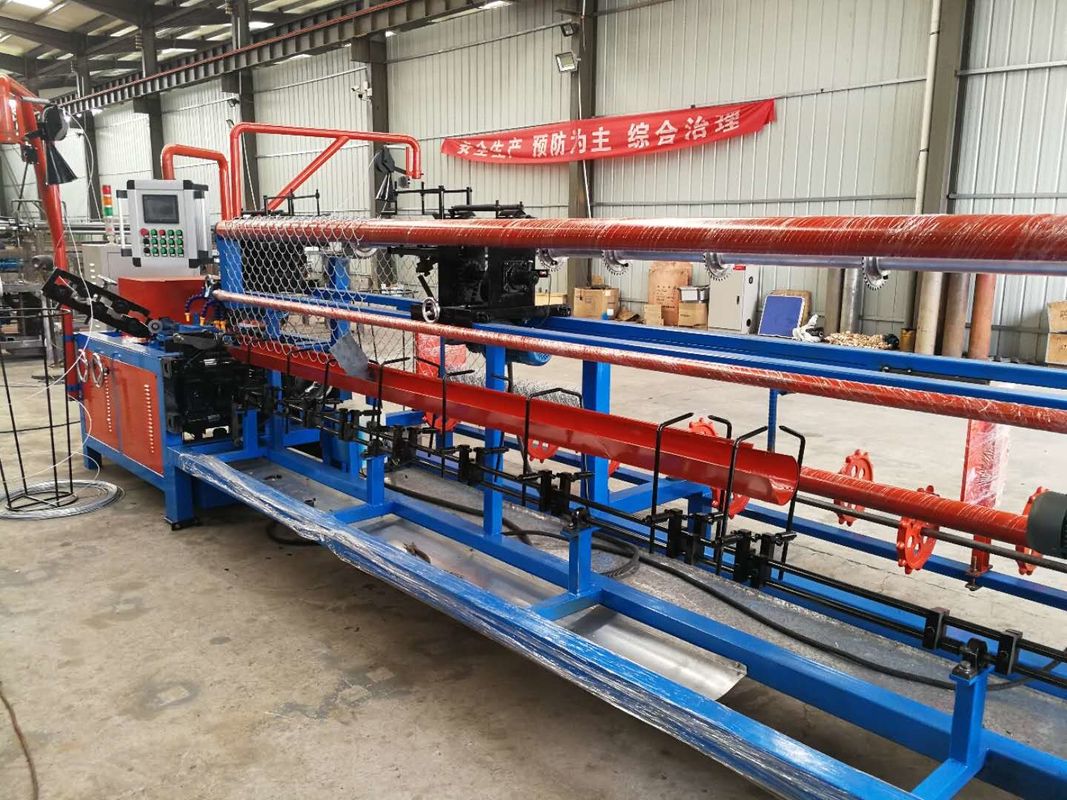

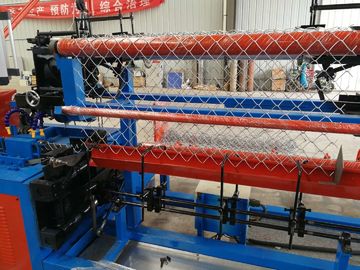

Fully Automatic Chain Link Fence Weaving Machine Double Wire Feeding
Technical Description
The fully automatic chain link fence weaving machine for producing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
The chain link is automatically wound to form rolls when the desired length is manufactured.
The fully automatic chain link fence weaving machine is controlled by PLC automatic controller, so only one person is needed to operate it. Use compacting machine to make it into rolls.
Technical Parameters
Product Name | Fully Automatic Chain Link Fence Weaving Machine |
Systerm Control | PLC Systerm Control |
Wire Diameter(mm) | 1.8-4.5mm Feeding Wire numbers:two |
Mesh Size(mm) | 25x25-100x100 |
Netting width(mm) | 1000-4000 |
Capacity(m2/hour) | 100-120 (m2/hour) |
Rated Voltage | 380V-3P-50HZ, can be made as your requirement |
Motor Power | 9.0kw |
Weight (T) | 4.2 |
Outside Size | 6600*1430* 1600mm |
Accessories |
Operation tools 1 set Operation manual 1PCS |
Guarantee Period | One Year |
Applications:
Used as an aquaculture fence, fence in coal mine, the stadium fence, the stadium fence net, network training, slope protection, greening around the block, rivers, buildings, residential area of safety protection, workshop/warehouse isolation, etc.
