Product Details:
Payment & Shipping Terms:
|
Wire Diameter: | 1.8--4.5mm | Mesh Size: | 30x30mm--80x80mm(depends On The Mould) |
---|---|---|---|
Width Of Mesh: | 500--3000mm | Suitable Material: | Galvanized Wire. PVC Coated Wire. Stainless Steel Wire. |
Capacity: | 80--130 Square Meters Per Hour | Feeding Wire: | Double Wire |
High Light: | chain link fence weaving machine,diamond mesh fencing machine |

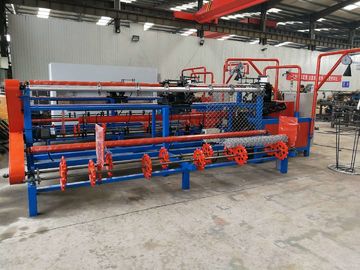

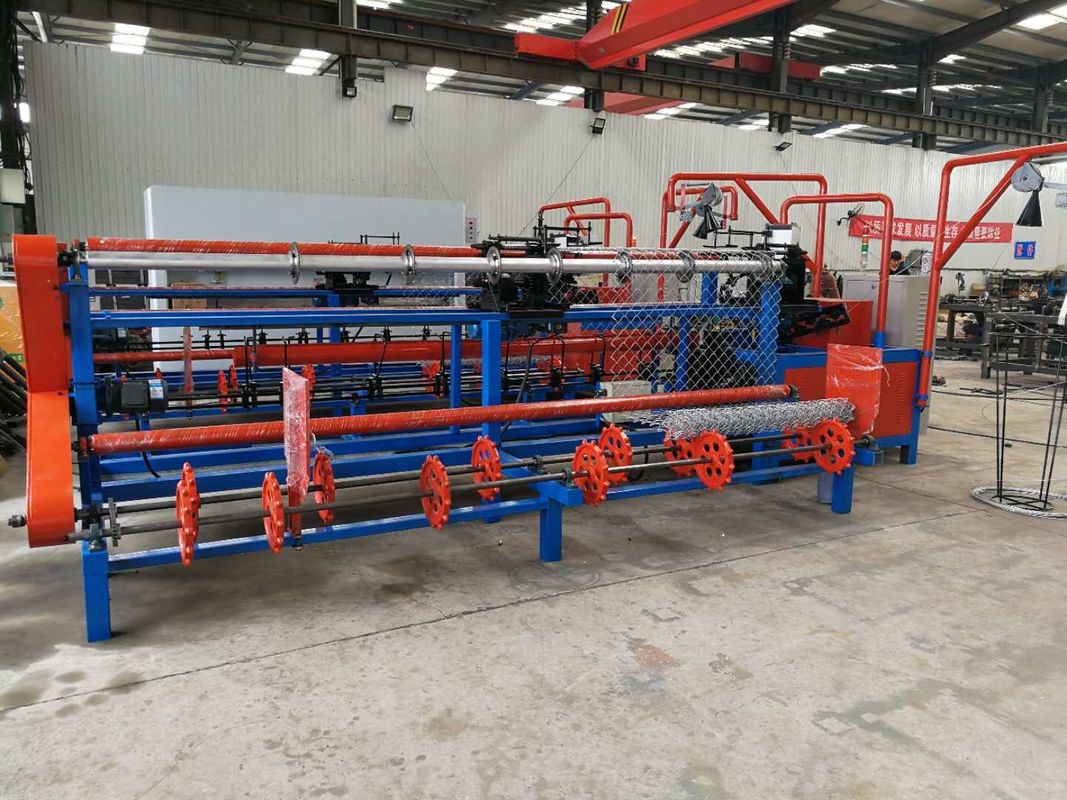

Fully Automatic Diamond Wire Mesh Weaving Machine PLC Control For Playground
Technical Description

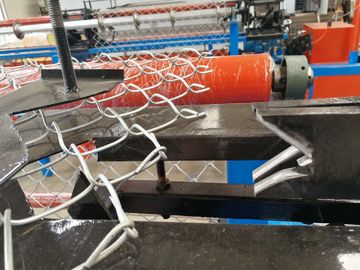

The Fully Automatic Diamond Wire Mesh Weaving Machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
The diamond wire mesh is automatically wound to form rolls when the desired length is manufactured.
The machine is controlled by PLC automatic controller, so only one person is needed to operate it.One side or both sides of the end of net hole is twisted or with burr in edge.
Use compacting machine to make it into rolls.
Electric System:
The Fully automatic Diamond Wire Mesh Weaving Machine is controlled by PLC automatic controller
Germany Siemens PLC origin
The inverter is selected from high quality products
Of Japan”YASKAWA”
Electrical
Low-voltage electrical from Germany Schneider
Electric&Machinery from Taiwan Teco Electric
Clutch from Taiwan YA CO,.LTD.
Technical patameter
wire diameter | 1.8--4.5mm | Motor power | 5.5KW servo motor |
Weaving width of mesh | Max 3000mm | Capacity | 80--130 square meters/h |
Mesh Size | 30*30--100*100mm | Weight | 2.3T |
Mesh Edge | Over lock or twist | Dimension | 4500x2100x1400mm |
Volts Power: 220V, 380V, 415V, 440V (According to your requirement) |
Suitable wire to the machine:
High-quality low-carbon steel wire ,Galvanized steel wire ,Stainless steel wire, PVC coated wire. Aluminum alloy wire,Aluminum-clad steel wire.
Function:
Fully Automatic Diamond Wire Mesh Weaving Machine is extensively used as fences for playground and gardens,super highway,railway,airport,port,residence,etc.
