Product Details:
Payment & Shipping Terms:
|
| Line Wire Type: | Coil Wire | Cross Wire Type: | Pre-cut |
|---|---|---|---|
| Wire Diameter: | 2.5--5.0mm | Mesh Opening: | 50*50mm--300*300mm |
| Length Of Mesh: | As Per Required | Welding Transformer: | 125KVA*6PCS |
| High Light: | fence panel making machine,mesh panel welding machine |
||

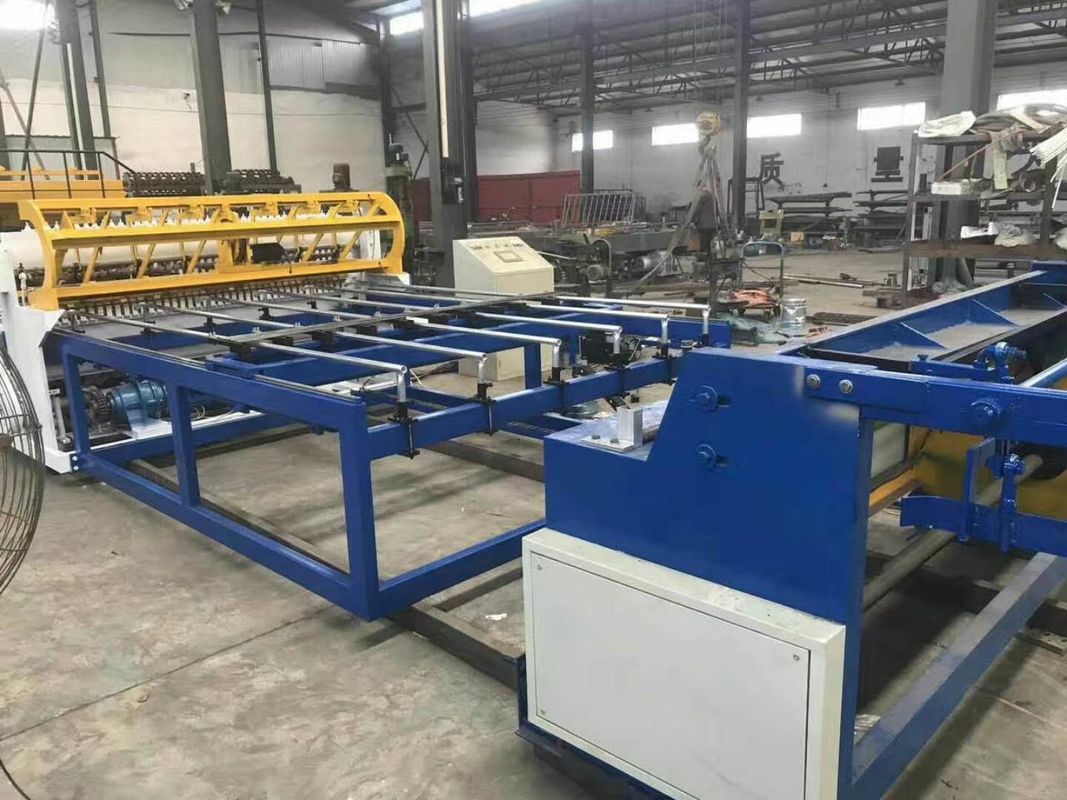

Fully Automatic Welded Mesh Panel Production Line Wire From Coil
Product description
1.The full automatic welded mesh panel production line control system adopts synchronous CNC technology, Panasonic PLC program and HMI. It is easy and convenient to operate with the touching screen.
2. The fallen wire system controlled by stepping motor instead of putting wefts wires by manual work, increasing productivity.
3. Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any character can be reach. Welding aperture can adjust randomly within range.
4. The Mesh pulling system is controlled by servo motor(Panasonic brand).
5. For example.you want to produce length of mesh 3m. mesh opening 100x100mm. firstly,input the quantity of mesh opening. Then input the length of mesh by touch screen. The mesh cutting machine will cut the mesh as per your required length of mesh
5, Transformer:125KVA*6(48welding heads) ——every 8 welding heads need a water cooling transformer.
6, Wire feeding way:The line wires from coil wire. and cross wires should be pre-straightened and pre-cut, then be put by manual work.
7, Material:Suitable for low carbon iron wire, black annealed wire GI wire.
Technical details:
| Wire diameter | 2.5--5.0mm | Line wire form | From coil |
| Line wire distance | 50--300mm | Weft wire form | Pre-cut wire |
| Cross wire distance | 50--300mm | Rated voltage | 380V 50HZ |
| Welding mesh width | Max 2500mm | Transformer power | 6PCSX125KVA |
| Welding speed | 45--60 times/min | Length of mesh | as per required |
| Welding spots | 48 | Dimension | 6m*3.2m*1.7m |
| Machine weight | 4.6T | Motor power | 4.0KW |
| Capacity | 270m per hour | Dimension of workshop | 20m*5*4m |
