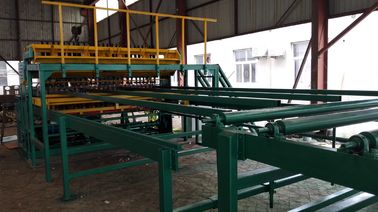

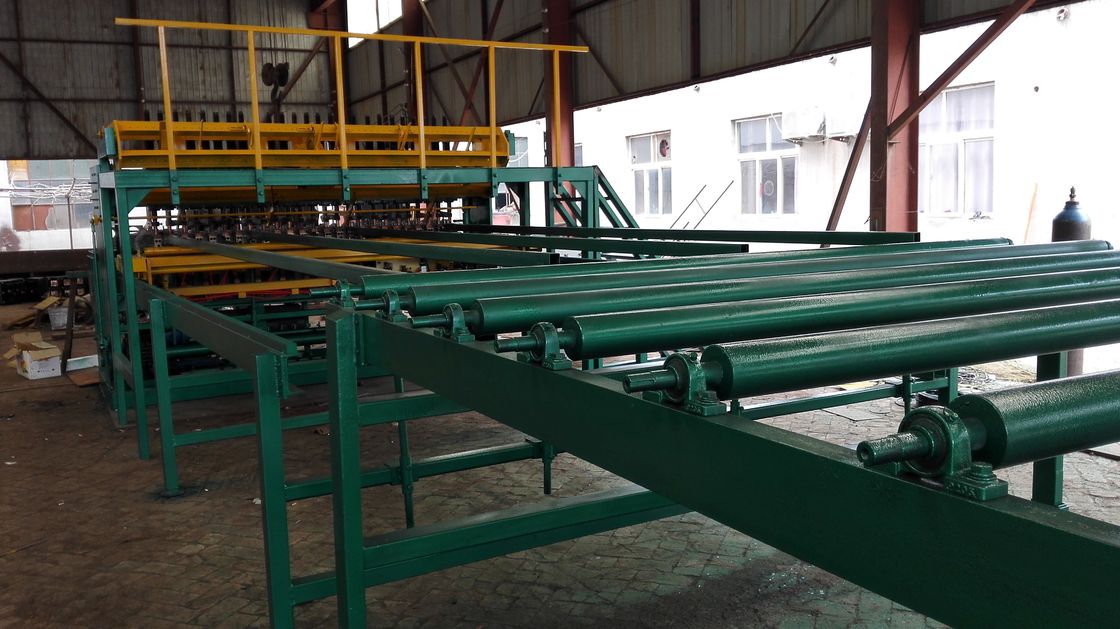

Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh

Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh

Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh
Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh

Large Image :  Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh Get Best Price

Product Details:

Place of Origin: Hebei China
Brand Name: MLG
Certification: CE ISO9001
Model Number: MLG-2500GS

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Main machine and auxiliary equipments in the container with plastic package.Main machine and auxiliary equipments in the container,spare parts in wooden box.
Delivery Time: Within 30 working days after receiving deposit or L/C.
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 4--5 sets per month
Detailed Product Description
Product Name: Reinforced Mesh Welding Machine Width Of Mesh: 2500mm
Mesh Size: 100*100--300*300mm(adjustable) Transformer: 125KVA*12
Power Supply: 160KVA Voltage: 380V 440V 220V
Welding Speed: 30--45 Times Per Min Pulling Mesh System: By Servo Motor
High Light:

rebar mesh welding machine

,

automatic steel bar cutting machine

Steel Bar Automatic Reinforced Mesh Welding Equipment





Main features:



1.The control system adopts synchronous CNC technology, Mitsubishi PLC program and HMI. It is easy and convenient to operate with the touching screen.


2. The fallen wire system sends weft wires one by one automatically instead of putting wefts wires by manual work, increasing productivity.


3. The sending mesh system controlled by computer can make—Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any character can be reach. Welding aperture can adjust randomly within range.


4. The main engine adopts imported and famous pneumatic components, making the service life long.


5. The welding wire is accurate and the welding points are firm for the big pressure.


6. This machine equips typical and efficient transformer, which gearless adjusted, enlarging the welding range.


7. Mesh drawing system is controlled by servo-motor that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.


8, Transformer:125KVA*12(24 welding heads) ——every two welding heads need a water cooling transformer.


9, Wire feeding way:The line wires and cross wires should be pre-straightened and pre-cut, then be put by manual work.


10, Mesh drawing method:controlled by servo-motor.



11, Material:Suitable for low carbon iron wire, deformed bar, round bar black annealed wire or galvanized (cold galvanized, hot galvanized) processing.



12, Product pulling system the mesh is pulled by gearing system below the mesh.



Technical parameters:



Wire diameter              5--12mm Line wire form             pre-cut wire
Weft wire distance 100mm--300mm(adjustable) Weft wire form             pre-cut wire
Line wire distance 100mm--300mm(adjustable) Rated voltage         380V/50HZ 3 phase
Width of mesh           2500mm Water cooling Transformer power             125KVA X 12
Welding speed         30-- 45times/min Overall dimension            20X 3.4X 2.1M
Welding spot heads.               24 Length of mesh                 6m
Total weight              7.5 T Motor power                7.5KW



Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh 0



Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh 1



Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh 2



Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh 3

Fully Automatic Welded Wire Mesh Machine 2500mm Mesh Width For Construction Mesh 4
