Product Details:
Payment & Shipping Terms:
|
| Motor: | 4KW | Mesh Type: | Mesh Panel |
|---|---|---|---|
| Welding Speed: | 40--60 Times Per Min | Mesh Size: | 50--300mm |
| Weight: | 4T | Color: | According To Your Request |
| High Light: | fencing wire making machine,mesh panel welding machine |
||

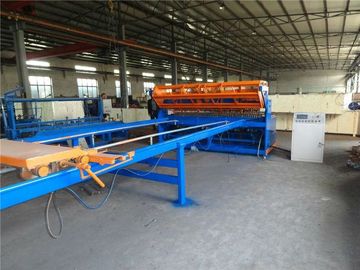

Best Price Automatic Welded Mesh Fence Machine
Specifications
1.Wire diameter: 3-6mm
2.Line wire form: pre-straightening and pre-cutting wire
Cross wire form: pre-straightening and pre-cutting wire
3.Control system :synchronous with PLC control ,touch screen board
4.Cross feeding system :automatic falling controlled by step motor
5.Advantage: welding different size mesh on the same wire mesh panel.
6. Firm welding, Little noise, High speed
Detailed Parameters
| Reference items | The main parameter | ||
| model | MLG-6MA50-2100 | MLG-6MA50-1600 | MLG-6MA50-1200 |
| wire diameter | 3-6mm | 3-6mm | 3-6mm |
| welding aperture | 50x50-300x300mm | 50x50-300x300mm | 50x50-300x300mm |
| width of mesh | 2100mm | 1600mm | 1200mm |
| number of electrodes | 40(customized) | 32(customized) | 24(customized) |
| welding speed | 40-60times/min | 40-60times/min | 40-60times/min |
| rated voltage | 380V(customized) | 380V(customized) | 380V(customized) |
| rated capacity | 5x125KVA(customized) | 4x125KVA(customized) | 3x125KVA(customized) |
| overall dimension | 2.8x1.7x1.5m | 2.3x1.7x1.5m | 1.9x1.7x1.5m |
| machine weight | 4T | 3.5T | 3T |
| line wire&cross wire form | pre-straightening and pre-cutting wire | pre-straightening and pre-cutting wire | pre-straightening and pre-cutting wire |
| operation | touch-screen board | touch-screen board | touch-screen board |
Application :
Application materials : welding machine is good at welding various metal wire : stainless steel wire , low carbon steel wire , round steel bar, ribbed steel bar
Application mesh panel : welded mesh panel widely used as welded wire mesh fence panel,school playground fence , 3D wire mesh fence, welded garden fence curve welded fence and construction mesh panels
