Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 1.6--3.2mm | Width Of Mesh: | Max 4300mm |
|---|---|---|---|
| Mesh Size: | According To Your Requirement | Motor: | 15KW |
| Name: | Gabion Wire Mesh Machine | Dimension: | 7200*1400*2300mm |
| High Light: | gabion wire mesh machine,gabion box machine |
||

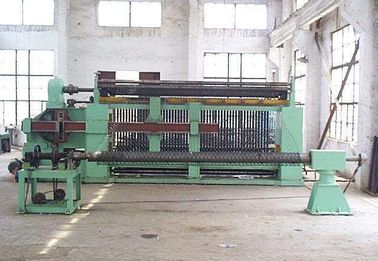

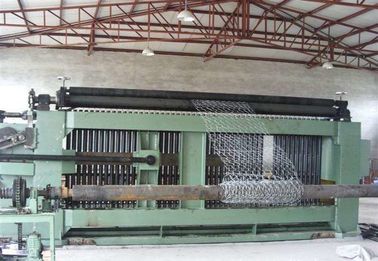

Gabion Mesh Production Line / Gabion Wire Netting Machine
Advantages:
1. New type double rack drive gabion knitting machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
Technical parameter:
| Model | Mesh hole(mm) | Max width(mm) | Wire diameter(mm) | Twisting number | motor | Capacity(m/h) |
| LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 11 | 165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | |||
| LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 | |||
| LNWL23-120-2 | 120*150 | 1.6-3.2 | 255 | |||
| LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 15 | 165 | |
| LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 | |||
| LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 | |||
| LNWL33-120-2 | 120*150 | 1.6-3.5 | 255 | |||
| LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 22 | 165 | |
| LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 | |||
| LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 | |||
| LNWL43-120-2 | 120*150 | 1.6-3.2 | 255 | |||
| LNWL43-60-3 | 60*80 | 4300 | 1.6-2.8 | 5 | 22 | 165 |
| LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 | |||
| LNWL43-100-3 | 100*120 | 1.6-3.0 | 225 | |||
| LNWL43-120-3 | 120*150 | 1.6-3.2 | 255 |
Raw Material of Gabion Mesh Machine
It consists of coated wire and galvanized wire.
Functions of Gabion Mesh Machine
It is widely used in petroleum, construction, farming, chemical industry, heating pipes and other pipes parcel wire mesh.
2. It can be used to make stone wire mesh cages, which are widely used to protect and support the seawall, hillsides, road and bridge, reservoirs and other civil engineering, also it is the best material for flood.
