Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Wire Mesh Welding Machine | Model: | MLG-DNW |
|---|---|---|---|
| Wire Diameter: | 0.45--2.6mm | Width Of Mesh: | Max 2.5m |
| Welding Speed: | 80--120 Times Per Min | Motor: | 2.2KW 4.0KW |
| High Light: | wire cage welding machine,wire cage making machine |
||

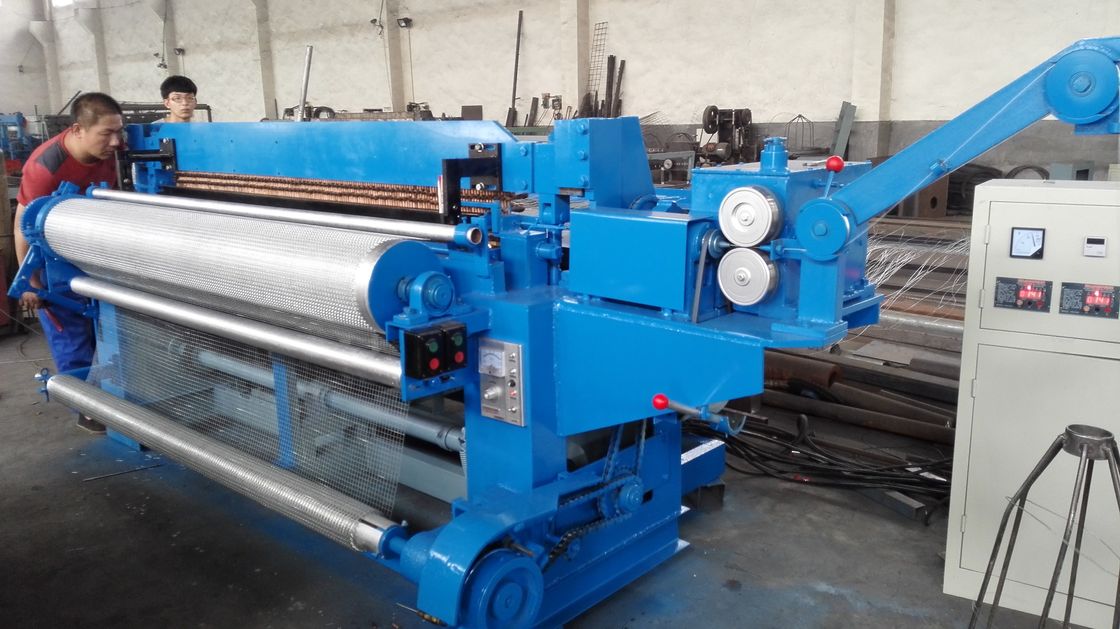

Electric Galvanized Full Automatic Welded Wire Mesh Machine In Roll
Machine Description
1. Both of the longitude wire and cross wire are fed from wire coils automatically.
2. The raw material is suitable for black wire, galvanized wire or stainless steel wire.
3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.
4. The mesh roll length can be set by counter switch on the control panel.
5. The welding transformers have 8 degrees and can be adjusted for different wire diameters.
6. The welding time and welding current can be adjusted on the control panel to guarantee welding solid.
7. It has advantages such as reasonable design, low noise, stable working, easier operation and electro-magnetism speed adjustment.
Technical Parameters
| Model | MLG-DNW-1 | MLG-DNW-2 | MLG-DNW-3 |
| Wire diameter | 0.4-0.65mm | 0.65-1.2/1.8/2/2.2mm | 1.0-2.2, 1.2mm-2.5mm |
| Aperture/pitch | 1/4”-1/2” | 1/2”-4” | 1”-4” |
| Mesh width | Max.1.2m | Max.1.2m, 1.5m, 2m | Max.1.2m,1.5m, 2m, 2.5m |
| Motor | 2.2kw | 2.2kw, 3kw, 4kw | 2.2kw; 3kw, 4.0kw |
| Welding speed | Max.75 rows/min | Max.120-130 rows/min | Max.80-120rows/min |
| Measurement | 2.3*1.3*1.4m | 2.5/2.9*1.3*1.4m | 2.5/2.9*1.3*1.4m |
| Weight | 1.5T | 2T, 2.5T | 2T, 2.5T, 3T, 3.5T |
| Transformers | 50kva*3 | 60kva*4;60kva*5 | 70kva*4/5/7/8 |
Applications;
Welded wire mesh can be used as poultry cage, sheng egg basket, channel, fence, fencing, porch, rat net sink, mechanical protective cover, animal and plant fence, fence, etc., are widely used in industry, agriculture, construction, transportation, mining, field, lawn, cultivation and other industries fence, decoration, mechanical protection and other industries.
Finished product
