Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 2.0--5.0mm | Width Of Mesh: | 1200mm Or As Per Required |
|---|---|---|---|
| Line Wire Distance: | 100mm | Cross Wire Distance: | 25--200mm |
| Raw Material: | Galvanized Wire | Welding Speed: | 0--80 Times Per Min |
| High Light: | wire mesh making machine,chicken mesh making machine |
||

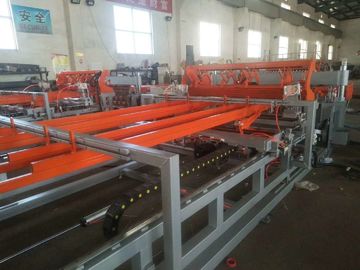

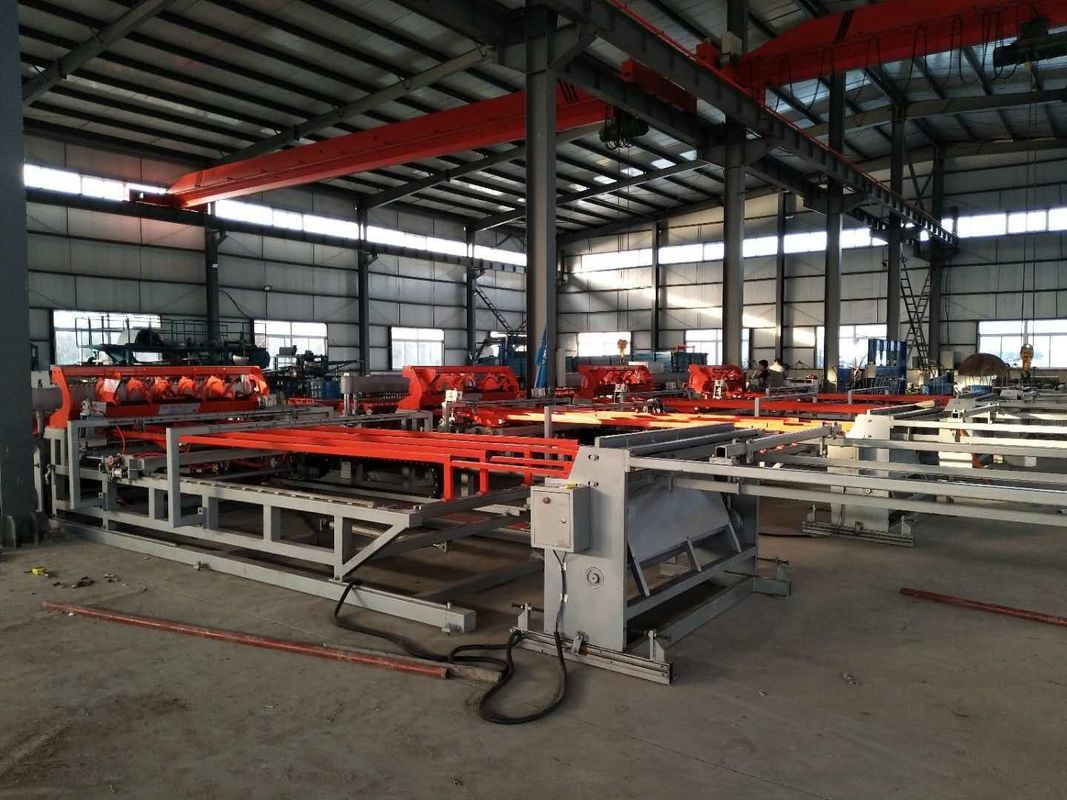

Galvanized Wire Automatic Mesh Welding Machine For Chicken Cage
Product description
1. This automatic mesh welding machine adopts synchronous control technique. The center-control and welding time are composed of Mitsubishi PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable.
2. The cross wire system is controlled by stepping motor. The falling cross wire is automatically one by one. Increasing productivity.The machine stops automatically if cross wires are used up in the hopper.
3.Adjustable longitude wire space and cross wire space. The greatest advantage is that you can adjust the space of longitude wire space and weft wire space at random on the same one piece mesh panel.
4.Mesh pulling system is controlled by servo-motor (Panasonic brand) that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.
5. Input the mesh opening and length of mesh by touch screen in the control cabinet. The mesh cutting machine will cut mesh length when rach the settled length of mesh.
5.Welding transformer: 125KVA*2PCS(13 welding spots.) every 6 welding spots need one water cooling transformer.
6.Wire feeding way:The line wires from coil wire and cross wires should be pre-straightened and pre-cut, then be put by manual work.
7.Material:Suitable for galvanized wire, low carbon iron wire, ribbed wire, cold drawn wire and so on.
Technical parameter:
| Wire diameter | 2.0--5.0mm | Line wire form | Coil wire |
| Line wire distance | 100--200mm(adjustable) | Weft wire form | Pre-cut wire |
| Cross wire distance | 25--200mm(adjustable) | Rated voltage | 380V 50HZ |
| Welding net width | Max 1200mm | Welding transformer | 3X125KVA |
| Welding speed | 0--80 times/min | Panel mesh Length | As per required |
| Welding spots | 13 | Dimension | 9.5m*3.2m*1.6m |
| Machine weight | 4.2T | Motor power | 4.0 KW |
Advantage:
1.PLC Panasonic brand Japan.
2. Frequency Converter Delta brand Taiwan
3 servo driver Panasonic brand. Japan
4 Touch screen Weinview brand Taiwan
5 low voltage apparatus Schneider France
