Product Details:
Payment & Shipping Terms:
|
Product Name: | Gabion Making Machine | Width Of Mesh: | Max 4500mm |
---|---|---|---|
Mesh Size: | 60*80mm 80*100mm 100*120mm 120*150mm | Wire Diameter: | 1.8--4.0mm |
Color: | Green | Material: | Iron Plate |
High Light: | gabion wire mesh machine,gabion box machine |

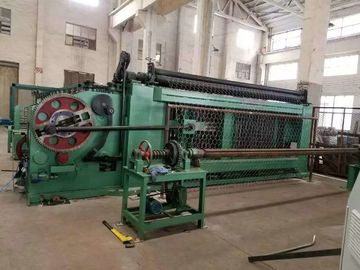

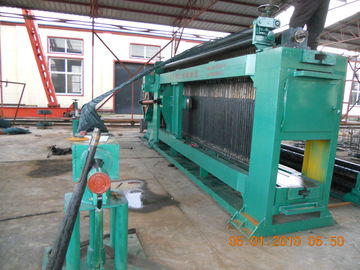

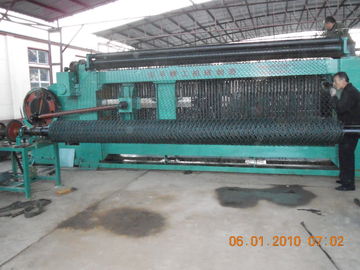

1. New type double rack drive gabion knitting machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
Technical parameter:
Product specification (mm) |
Largest width of shell fabric (mm) |
Largest wire diameter (mm) |
Motor power (kw) |
Weaving speed (m/hour) |
Boundary dimension (mm) |
Weight (T) |
60*80 | 2400 | 3.5 | 15 | 165 | 5200*1400*2400 | 13.5 |
3300 | 3.5 | 18 | 6200*1400*2400 | 15 | ||
4500 | 4 | 30 | 7200*1400*2400 | 15.5 | ||
80*100 | 2400 | 3.5 | 15 | 200 | 5200*1400*2400 | 13.5 |
3300 | 3.5 | 18 | 6200*1400*2400 | 15 | ||
4500 | 4 | 30 | 7200*1400*2400 | 15.5 | ||
100*120 | 2400 | 3.5 | 15 | 220 | 5200*1400*2400 | 13.5 |
3300 | 3.5 | 18 | 6200*1400*2400 | 15 | ||
4500 | 4 | 30 | 7200*1400*2400 | 15.5 | ||
120*150 | 2400 | 3.5 | 15 | 230 | 5200*1400*2400 | 13.5 |
3300 | 3.5 | 18 | 6200*1400*2400 | 15 | ||
4500 | 4 | 30 | 7200*1400*2400 | 15.5 | ||
Note: Special specifications can be made according to requirement of clients. |
Applications;
1. Control and guide the river and flood
2. The spillway dam and the diversion dam
3. Rock cage mat protection
4. Gubin box prevents water and soil erosion
5. Protection of | gubing.com bridge
6. Grid structure
7. Coastal defense project of the caged network
8. The harbour project of the caged network
9. The stone cage | gebin retaining wall
10. Road protection of the cage net
Finished product:
